1000M 16 PoE Ports+2*Uplink+1*SFP desktop POE Switch

The POE Powered Switch supports the IEEE802.3af/at power over Ethernet standard with a power distance of 100 meters and only powers 802.3af/at terminal devices, so there is no need to worry about compromising proprietary standards for POE or non-POE devices. In addition, the POE device stops supplying power when it is not connected. These devices, which are far from the power outlet, are suitable for hanging on the wall or on the ceiling, and the POE eliminates the need to connect the power outlets for these devices, making the connection to equipment that is difficult to connect to AC power more flexible and with minimal installation costs. This series POE Powered switches are ideal selection for small business networks that want to use the economic deployment of wireless access points (AP) and IP-based network surveillance cameras .


  • 产品特点
  • 技术参数
  • 产品尺寸
  • 订购信息
  • 典型应用
  • 资料下载
  • l16* 10/100/1000Mbps downlink POE Ethernet Ports, 2* 10/100/1000Mbps uplink Ethernet Ports and 1* 1.25G SFP Ports;

    lSupports port auto-flip (Auto MDI/ MDIX);

    lEach of 16 ports all support IEEE802.3af/at;

    lMaximum power per port: 15.4W/30W;

    lMaximum POE power: 200W/300W;

    lAdopts store-and-forward architecture;

    lBuilt-in 1U rack power supply series, easy installation.


  • Item

    Description

    Power

    Power Adapter Voltage

    AC100-240V

    Consumption

    200W / 300W

    Network Connector

    Network Port

    116 Port : 10/100/1000Mbps        POE Ethernet Port

    Uplink Port : 10/100/1000Mbps   Ethernet Port

    Uplink Port : 1000Mbps          SFP Port



    Transmission Distance

    116 Port :  0~100m

    Uplink Port :  0~100m

    SFP: depends on the optical module



    Transmission Medium

    Cat5/5e/6 standard network cable

    Network Switch

    Network Standard

    IEEE 802.1Q, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ad,  IEEE 802.3az

    Switching Capacity

    38Gbps

    Packet Forwarding Rate

    26.784Mpps

    Power Over Ethernet

    POE Standard

    IEEE 802.3af/at

    POE Power Supply Type

    End-Span(1/2+;3/6-)

    POE Power Consumption

    af≤15.4W , at30W , (every port)

    LED Status Indicator

    POE Ethernet LED Indicator

    Power: 1 red light indicates that the power normal work;

    POE: 16 yellow lights indicate that the POE is power on;

    Ethernet: 19 green lights indicate that the Ethernet link and act;

    Environmental

    Working temperature

    0℃~55℃

    Relative Humidity

    20~95% non-condensing

    Storage temperature

    -20℃~70℃

    Mechanical

    Dimension (L×W×H)

    305*225*45mm

    Weight

    3100g

    Stability

    MTBF

    >30000h

  • 305*225*45mm

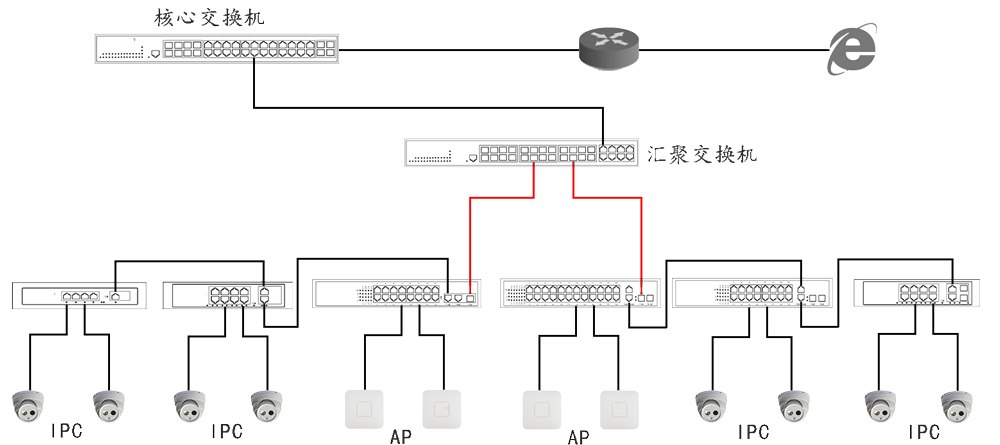

  • POE交换机应用矢量图.jpg
