Hardware Configuration |
Master Chip | MTK7620DA+7612E , 64M RAM Inside |
Flash | 8MB |
Size | 260*90*37mm |
Wireless Technology | 5.8G（802.11a/n/an/ac）2T2R |
Antenna | Inbuilt 14dBi Dual Polarization HG Directional Panel Antenna |
Wireless Speed | 5.8g 900Mbps |

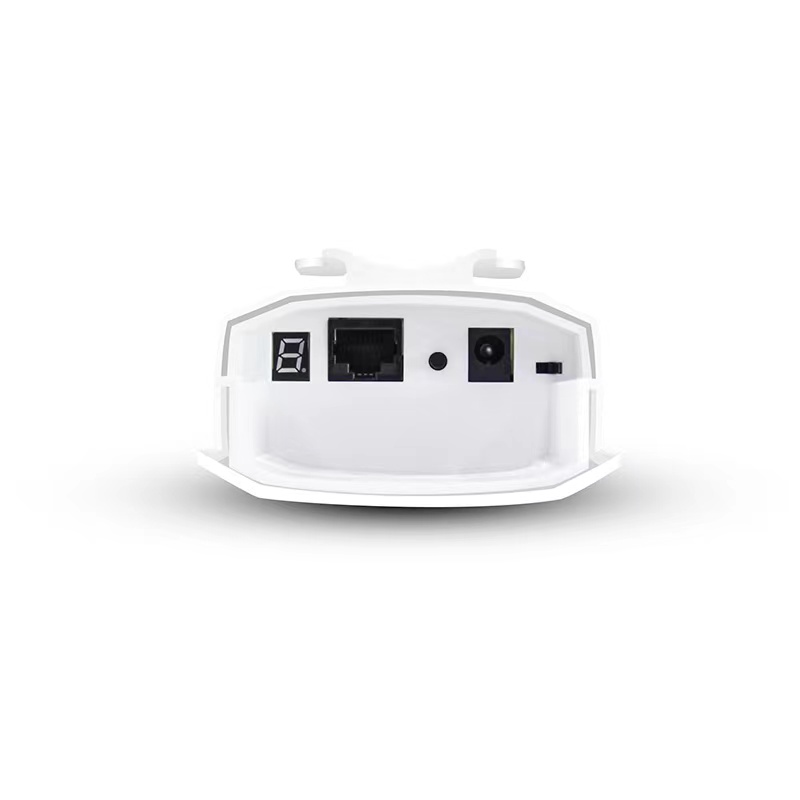

Network Port | 1*10/100/1000Mbps RJ45, 1*10/100Mbps RJ45 |
Power | DC 12V 1A / POE 24V 1A |
Button | 1*Digital Switch, Short Press to Change the Displayed Number 1*Reset，Long Press 5s to Reset 1*Toggle Switch, Dial to Convert Host/Subordinative |
Transmission Distance | 5KM |
Operating Frequency | 802.11a/n/an/ac : 5.1GHz~5.8GHz (China) |
Output | 11a | r6_24,r36,r48, | 23 | r54 | 20 | 11AC VHT20 | MCS0, MCS1_2, MCS3_4, MCS5, MCS6 | 23 | MCS7 | 23 |
MCS8 | 20 | MCS9 | 20 | 11AC VHT40 | MCS0, MCS1_2, MCS3_4, MCS5, MCS6 | 23 | MCS7 | 20 | MCS8 | 20 | MCS9 | 20 | 11AC VHT80 | MCS0, MCS1_2, MCS3_4, MCS5, MCS6 | 23 | MCS7 | 20 | MCS8 | 20 | MCS9 | 20 |
|
EVM | 11n MCS | Less than（dB） | Modulation | Coding rate | BPSK | 1/2 | -5 | QPSK | 1/2 | -10 | QPSK | 3/4 | -13 | 16QAM | 1/2 | -16 | 16QAM | 3/4 | -19 | 64QAM | 2/3 | -22 | 64QAM | 3/4 | -25 | 64QAM | 5/6 | -28 |
11ac MCS | Less than（dB） | Modulation | Coding rate | BPSK | 1/2 | -5 | QPSK | 1/2 | -10 | QPSK | 3/4 | -13 | 16QAM | 1/2 | -16 | 16QAM | 3/4 | -19 | 64QAM | 2/3 | -22 | 64QAM | 3/4 | -25 | 64QAM | 5/6 | -27 | 256QAM | 3/4 | -30 | 256QAM | 5/6 | -32 |
|
EVM | 5GHz | Symbol | Parameter | Rx(dBm) | 802.11a | Srf
(OFDM) | 1Rx chain | 6Mbps | -88 | 54Mbps | -72 | 802.11ac | 802.11ac VHT20 | 1 Stream(1x1) | MCS0 | -84 | MCS7 | -67.5 | MCS8 | -64 | 2 Stream(2x2) | MCS0 | -83 | MCS7 | -66.5 | MCS8 | -63 | 802.11ac VHT40 | 1 Stream(1x1) | MCS0 | -82 | MCS7 | -65.5 | MCS9 | -58.5 | 2 Stream(2x2) | MCS0 | -81 | MCS7 | -64.5 | MCS9 | -57.5 | 802.11ac VHT80 | 1 Stream(1x1) | MCS0 | -79 | MCS7 | -62 | MCS9 | -55.5 | 2 Stream(2x2) | MCS0 | -78 | MCS7 | -61 | MCS9 | -54.5 |
|
Support Wireless Speed | 802.11ac: 6.5Mbps-867Mbps 802.11n: 6.5Mbps and 300Mbps |
Work Environment | TEMP：-30℃～+55℃（work），-40℃ ～+70℃（storage） Humidity(Non-Condensing)：10％～90％（work），5％～95％（storage） |
Waterproof Rate | IP65 |

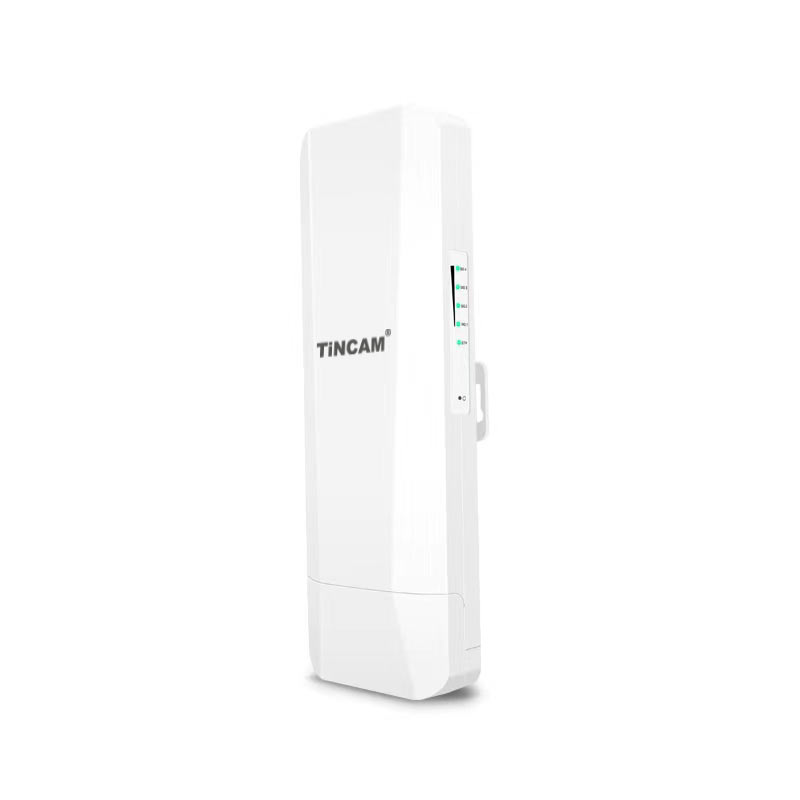

Signal Indicator LED | Bridge Access Point：Output Indicator Under 25%（SIG1 on），25%~50%（SIG1-SIG2 on），50%~75%（SIG1-SIG3 on），75%~100%（SIG1-SIG4 on） Bridge Client：Signal Strength Indicator The light on in turn when connection fails. If connection succeed, 0~-65dBm（SIG1-SIG4 on），-66~-75dBm（SIG1-SIG3 on），-76~-85dBm（SIG1-SIG2 on），under -86dBm（SIG1 on） |
|
LAN1 GigE Indicator | Flicker When Wire Data Transmission , Off When Wire Disconnects |
|
Wireless Indicator | Flickers When Bridge is Running Normally with Power |
|
Power Indicator | With Power, On Without Power, Off |
|
