Product Name

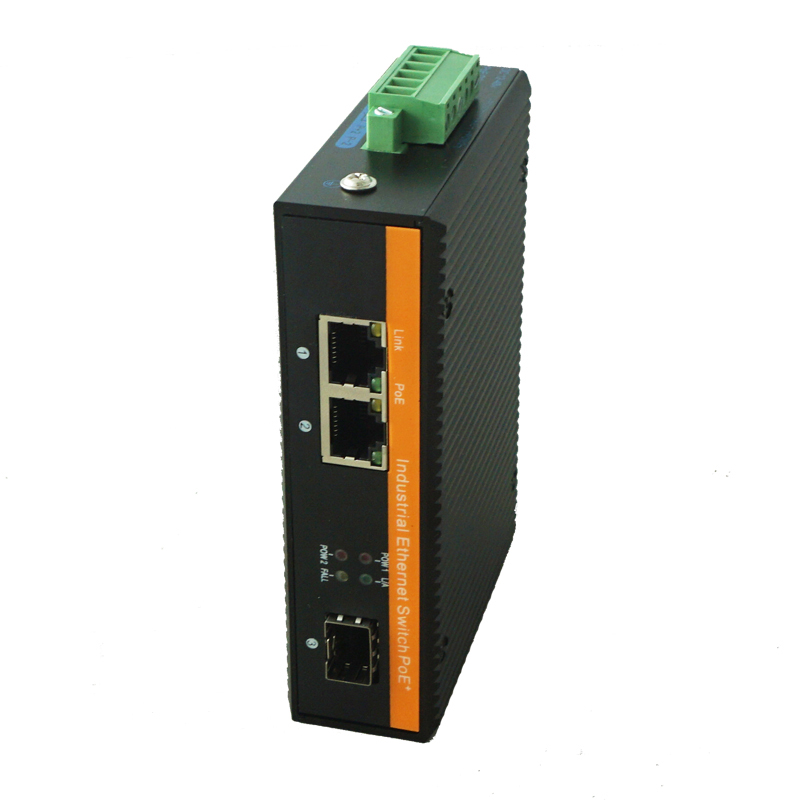

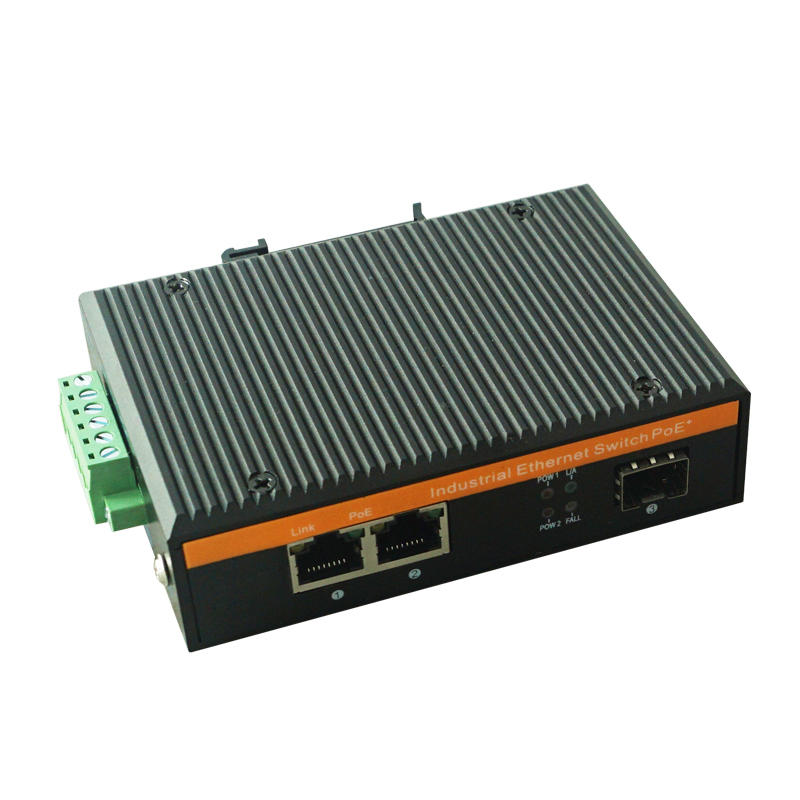

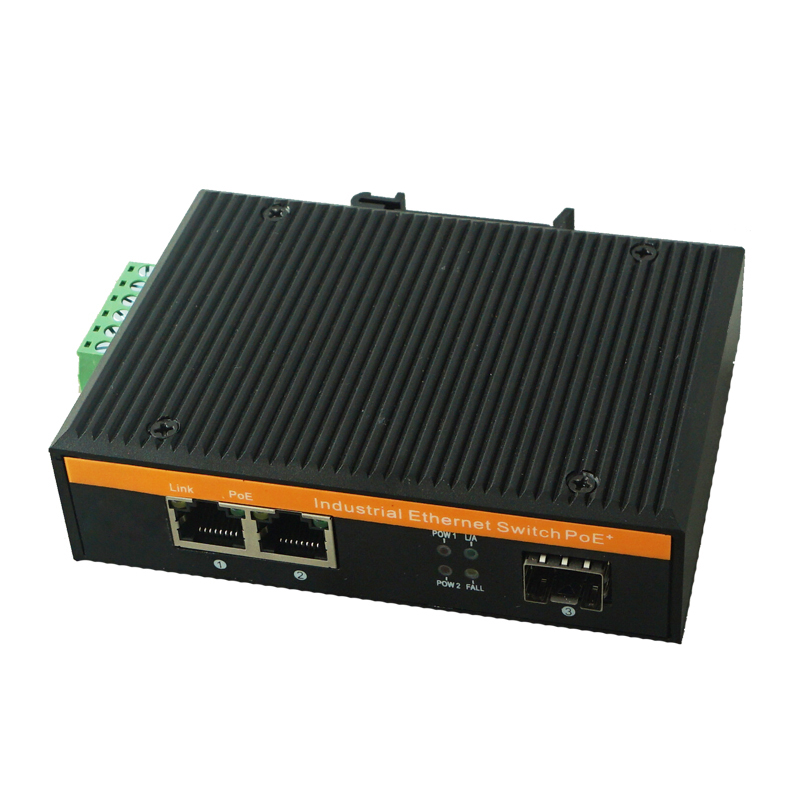

100M 1 fiber port+2 RJ45 ports Industrial POE Switch

Product Description

2*100M POE RJ45 ports + 1*100M fiber port Industrial POE Switch

Network protocol

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;IEEE802.3af; IEEE802.3at;

POE Standard

Standard POE : IEEE802.3af/ IEEE802.3at

POE port: 1~2 ports supports POE

Output Power :

Maximum power 15.4W (IEEE 802.3af)

Maximum power 25.5W (IEEE 802.3at)

POE port automatically recognizes af/at

Output voltage : DC48-57V

Power supply mode : 1/2+; 3/6-

RJ45 port

10/100BaseT (X) automatic detection, full / half duplex MDI / MDI-X adaptive

Fiber port

100BaseFX port (SC/FC/ST/SFP optional)

Twisted pair

10BASE-T : Cat3, 4, 5 UTP (≤100 meter)

100BASE-TX : Cat5 or later UTP (≤100 meter)

1000BASE-TX : Cat6 or later UTP (≤100 meter)

Cable

multimode:  850nm   0 ~ 550M

1310nm  0~2KM

Single mode: 1310nm  0~40KM

1550nm  0～120KM

Switch Properties

Application Level: Layer 2

Total backplane bandwidth: 1Gbps

Overall package forwarding rate: 0.744Mpps

MAC table: 1K

Packet buffer: 512K

Delay time: <3μs

Exchange method: store-forward

Protection level

IP40

LED indicator

Power indicator : PWR

Interface indicator: Electrical port, Optical port (Link/ACT)

Power supply

Input voltage: DC48-57V (dual power redundant backup)

Access terminal: Phoenix terminal

Support dual power redundancy

Support built-in overcurrent 4.0A protection

Support reverse connection protection

Other specifications

Working environment

Operating temperature: -40 ° C ~ + 85 ° C

Storage temperature: -40 ° C ~ + 85 ° C

Relative humidity: 5 ~ 95% (non- condensing)

Industry  Standard

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A.

EMS:
IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)

IEC61000-4-3 (RS): 10V/m (80-1000MHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6(CS):3V(10kHz-150kHz);10V(150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

IEC(EN )61000-4-8

Shock ：IEC 60068-2-27

Freefall ：IEC 60068-2-32

Vibration ：IEC 60068-2-6

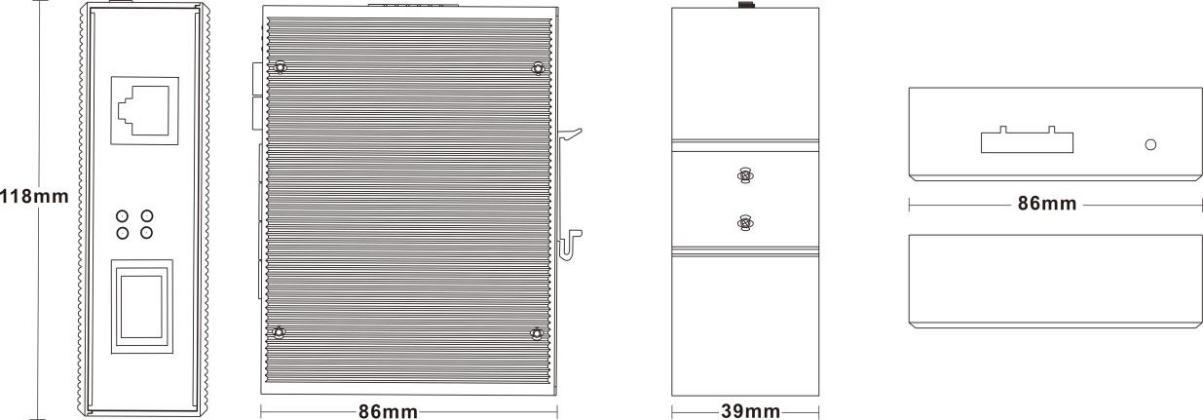

Mechanical properties

Shell: metal material

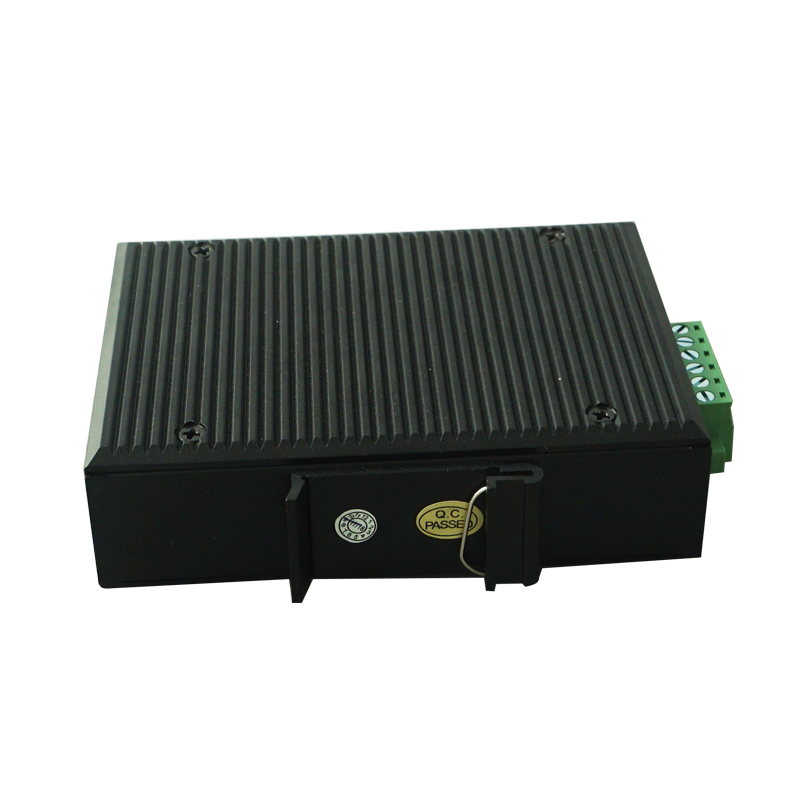

Installation: DIN rail type, wall-mounted installation

Weight: 0.36Kg

MTBF

 300,000 hours

  Warranty

5-years
