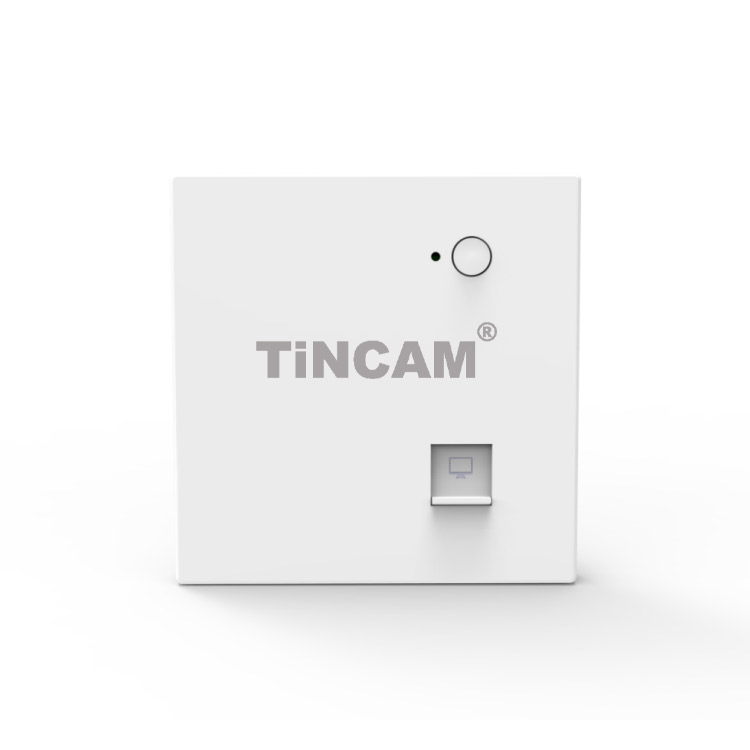

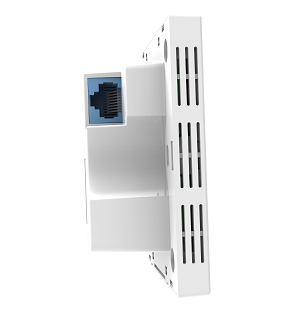

TBC-PTR300 300M Wireless panel AP

This is a high-performance dual-band 802.11N in-wall AP that supports intelligent channel analysis, automatic optimal channel selection, and can support a total bandwidth of up to 300Mbps . This product supports gateway, AP and other modes, which can provide users with a variety of networking methods, making user application scenarios more extensive.

  • 产品特点
  • 技术参数
  • 产品尺寸
  • 订购信息
  • 典型应用
  • 资料下载
  • uSupport hardware watchdog function, maintenance-free

    uButton design: turn off the light and turn off the WiFi function to ensure that the user is in a comfortable environment

    uIntegrated PoE (IEEE 802.3af PoE) to reduce deployment overhead

    uInternal antenna is factory optimized for maximum RF performance.

  • Specification



    CPU

    MT7628DAN

    Flash

    8M

    DDR2

    64M

    2.4G Working frequency

    2.4GHz – 2.484GHz

    2.4G WIFI Transfer Protocol

    802.11 b / g / n

    Built-in antenna 2 .4G

    Omnidirectional antenna 2pcs, each gain: 2dBi

    SSID hide

    Support

    Top speed

    300Mbps

    Maximum support for wireless access

    50+

    Interface (WAN)

    1 10/100M adaptive WAN port, support 48V POE power supply

    Interface LAN)

    Interface (LAN) 1 10/100M adaptive LAN port

    POE

    802.3af

    Reset

    reset key (short press once to turn off the light, short press twice in a row to turn off the light and WIFI, long press for 10 seconds to restore the factory default configuration)

    Status Indicator

    system lights

    Maximum power consumption

    <8W

    ESD test- I

    air discharge:±4KV

    Surge test- I

    common mode:±2KV

    Product size

    87mm*86mm*35.8mm

    working environment

    Normal operating temperature: -20°C to 40°C; Extreme operating temperature -30°C to 45°C; Storage temperature: -40°C to 70°C; Humidity: 5%~95% (non-condensing)

  • 87mm*86mm*35.8mm
