1000M 24 PoE Ports+2*Uplink+2*SFP rack POE Switch Internal Power Supply

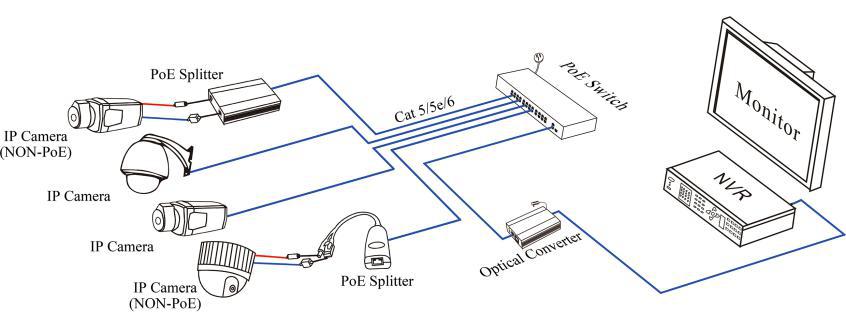

The POE Powered Switch supports the IEEE802.3af/at power over Ethernet standard with a power distance of 100 meters and only powers 802.3af/at terminal devices, so there is no need to worry about compromising proprietary standards for POE or non-POE devices. In addition, the POE device stops supplying power when it is not connected. These devices, which are far from the power outlet, are suitable for hanging on the wall or on the ceiling, and the POE eliminates the need to connect the power outlets for these devices, making the connection to equipment that is difficult to connect to AC power more flexible and with minimal installation costs. This series POE Powered switches are ideal selection for small business networks that want to use the economic deployment of wireless access points (AP) and IP-based network surveillance cameras .

  • 产品特点
  • 技术参数
  • 产品尺寸
  • 订购信息
  • 典型应用
  • 资料下载
    • 2 uplink 10/100/1000M SFP optical ports ;

    • The 24-port POE Ethernet switch provides 24*10/100/1000Mbps POE RJ45 ports, supports af/at power supply standard, End-spanning method, and 30W power output;

    • Flow control mode: Full-duplex adopts IEEE 802.3x standard and half-duplex adopts Back pressure standard;

    • Support port auto-flip (Auto MDI/MDIX);

    • Maximum POE power: 450/800W optional (all POE ports, 1 to 24 ports);

  • Item

    Description

    Power

    Power Supply

    Internal Power Supply

    Voltage range

    AC100-240V

    Network Information

    Network Ports

    1-24 Downlink10/100/1000Mbps

    2*UPLINK Optical port10/100/1000Mbps

    Transmission distance

    1-24 Downlink0-100m

    2*UPLINK Depends on the Optical Module

    Transmission medium

    Cat5 and above Unshielded twisted pair

    Network Standard

    IEEE 802.1Q,IEEE802.1s,IEEE802.1x, IEEE 802.3ad, IEEE 802.3az

    Switching Capacity

    52Gbps

    Packet Forwarding Rate

    36.688Mpps

    MAC Table

    8K

    POE Information

    POE Standard

    IEEE802.3af/at

    POE Type

    End-Span1/2+3/6-

    POE port Features

    15.4/30W output power, 450/800W total power

    LED Status Indicator

    Power

    Red light indicates that power normal work;

    Network indicator

    Green light indicates that Link/act is working normally;

    POE indicator

    Flashes Yellow indicates that POE is working normally;

    Operating Environment

    Operating Temperature

    0℃55℃

    Storage temperature

    -20℃~70℃

    Humidity

    20~95% (non-condensing)

    Mechanical

    Dimension (L×W×H)

    430*230*45mm

    Material

    Sheet metal

    Color

    Black

    Weight

    3645g

  • Dimension (L×W×H)          430*230*45mm
