1000M 16 PoE Ports+2*Uplink+2*SFP rack POE Switch

The POE Powered Switch supports the IEEE802.3af/at power over Ethernet standard with a power distance of 100 meters and only powers 802.3af/at terminal devices, so there is no need to worry about compromising proprietary standards for POE or non-POE devices. In addition, the POE device stops supplying power when it is not connected. These devices, which are far from the power outlet, are suitable for hanging on the wall or on the ceiling, and the POE eliminates the need to connect the power outlets for these devices, making the connection to equipment that is difficult to connect to AC power more flexible and with minimal installation costs. This series POE Powered switches are ideal selection for small business networks that want to use the economic deployment of wireless access points (AP) and IP-based network surveillance cameras .

  • 产品特点
  • 技术参数
  • 产品尺寸
  • 订购信息
  • 典型应用
  • 资料下载
    • 2 uplink 10/100/1000Mbps fiber ports;

    • The 16-port POE Ethernet switch provides 16*10/100/1000Mbps POE RJ45 ports, supports af/at power supply standard, End-spanning method, and 30W power output;

    • Flow control mode: Full-duplex adopts IEEE 802.3x standard and half-duplex adopts Back pressure standard;

    • Support port auto-flip (Auto MDI/MDIX);

    • Maximum POE power: 250/450W optional (all POE ports, 1 to 16 ports);

  • Total power

    200W / 260W



    UPLINK

    2*10/100/1000Mbps RJ45 Ports +2*1.25G SFP Fiber ports

    POE Port

    1-16

    POE distance

    100m

    Singl port power

    15.4W(16W)/25.5W(30W)

    Power supply pin

    4 5 +/7 8-

    data transmission

    1 2 +/3 6-

    voltage range

    AC220V / DC52V

    Tempreature

    -20℃~65℃

    size

     430*295*45mm(1U Rack type)

  •  430*295*45mm

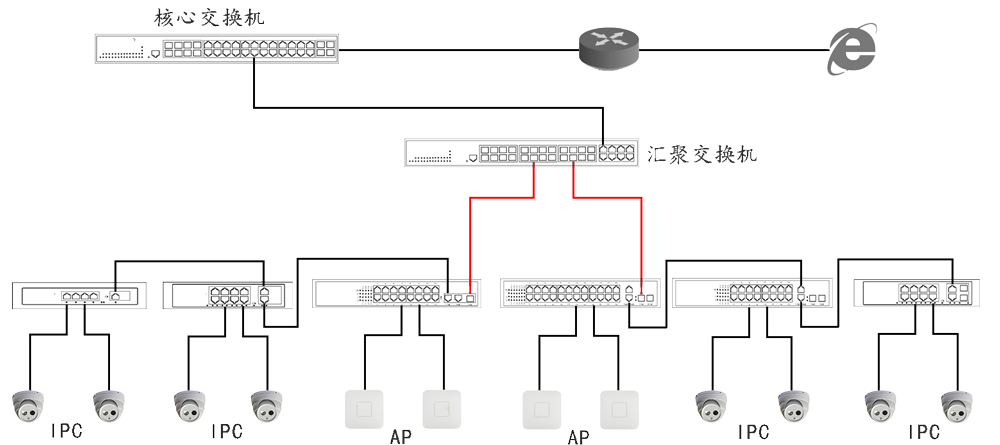

  • POE交换机应用矢量图.jpg
