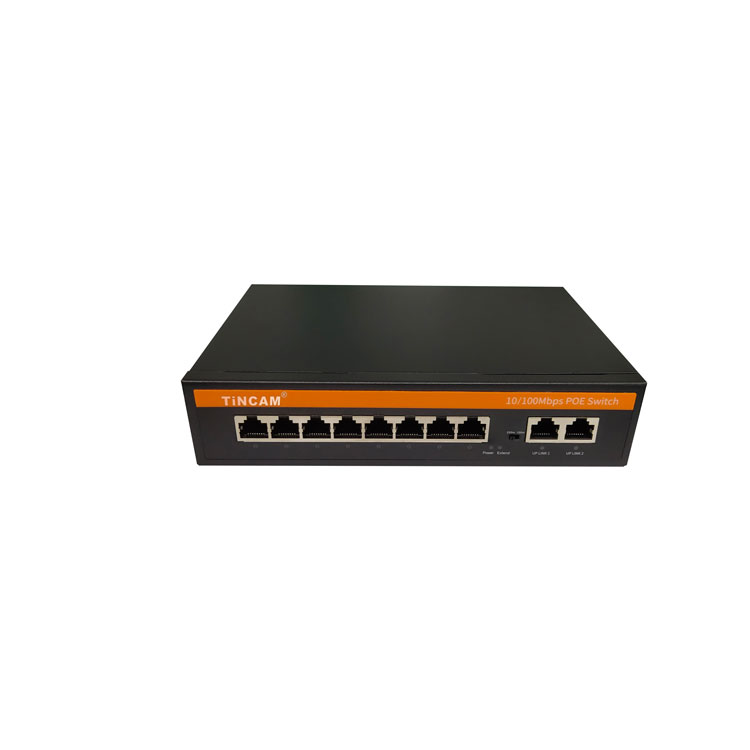

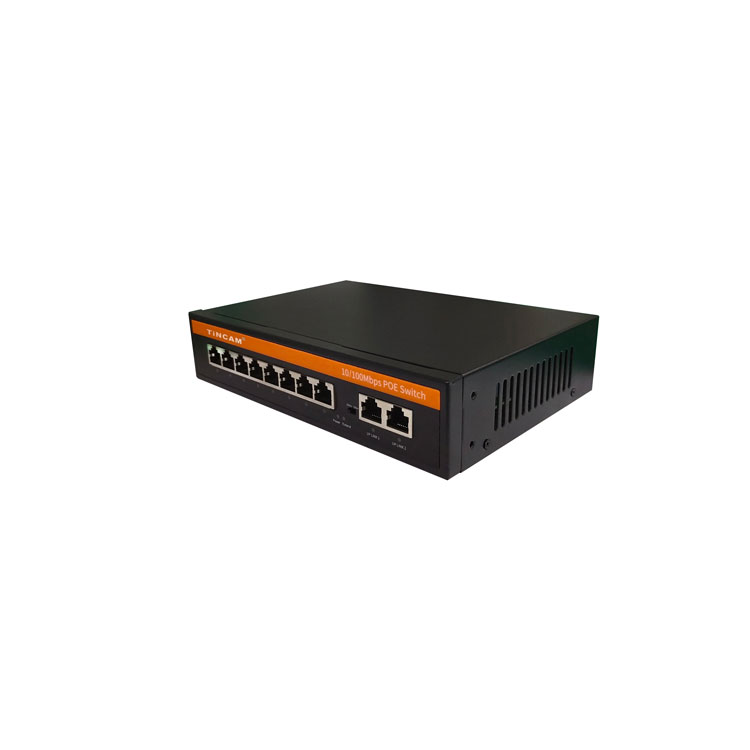

10/100M 8* PoE Ports+2*Uplink Port POE Switch Internal Power Supply

The POE Powered Switch supports the IEEE802.3af/at power over Ethernet standard with a power distance of 100 meters and only powers 802.3af/at terminal devices, so there is no need to worry about compromising proprietary standards for POE or non-POE devices. In addition, the POE device stops supplying power when it is not connected. These devices, which are far from the power outlet, are suitable for hanging on the wall or on the ceiling, and the POE eliminates the need to connect the power outlets for these devices, making the connection to equipment that is difficult to connect to AC power more flexible and with minimal installation costs. This series POE Powered switches are ideal selection for small business networks that want to use the economic deployment of wireless access points (AP) and IP-based network surveillance cameras .

  • 产品特点
  • 技术参数
  • 产品尺寸
  • 订购信息

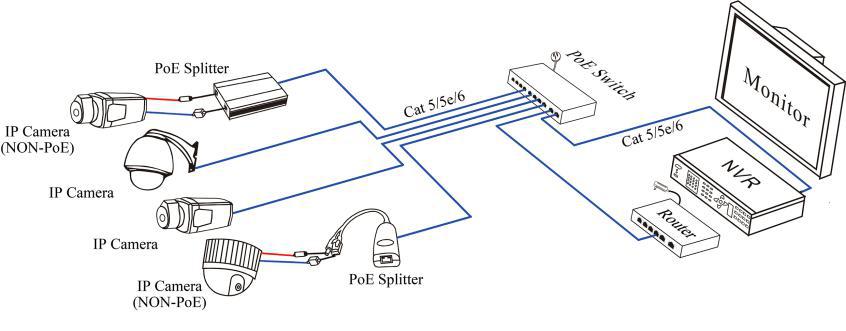

  • 典型应用
  • 资料下载
  • 1. Meet IEEE802.3 10Base-T and ie802.3u 100Base-T Ethernet standards

    2. Flow control mode: IEEE 802.3x standard is adopted for full duplex and back pressure standard is adopted for half duplex;

    3. Port supports 10 / 100M adaptive and auto flip (automdi / mdix)

    4. Ethernet port two-level lightning protection technology ensures product stability

    5. Support fixed port VLAN (ieee802.1q1 VLAN)

    6. The exchange mechanism of store and forward

    7. All ports support line speed switching. Line speed can be achieved within 1536k frame length. Line speed switching is supported,

    8. Imported chip, automatic cooling

    9. With MAC address automatic learning, automatic update function;

    10. 1-2 uplink 10 / 100Mbps adaptive ports are used for cascade or external network access platform;

    11. The 8-port Poe Ethernet switch has 8 downlink 10 / 100Mbps adaptive Poe intelligent power supply ports, supports ieee802.3af/at power supply international standard, 12 + / 36 -, 15.4/25.5w power supply output by end bridging method;

    12. Poe transmission with extended network extended signal mode, the network power switch can transmit up to 250m by itself

    13.Support auto MDI / mdix;


  • Product model

    TBC-BPS4306N

    TBC-BPS4310N

    TBC-PSF4314ES20A

    TBC-PSF4318ES20A

    PoE port

    1-4port

    1-8port

    1-4port

    1-8port

    PoE distance

    100m or 250m(Switch and indicator analysis)

    Voltage range

    AC220V/DC52V

    Port power

    IEEE802.3af/at standard   15.4W16W/25.5W30W

    Whole machine power

    65W/120W

    120W/250W

    65W/120W

    120W/250W

    UPLINK

    *10/100Mbps Ethernet port

    155M fiber :SC/FC(20km)

    working temperature

    -20~+65

    exchange capacity

    12Gbps

    20Gbps

    10Gbps

    18Gbps

    Packet forwarding rate

    0.9Mpps

    1.488Mpps

    0.7Mpps

    1.339Mpps

    Product size

    Built in power supply  190*140*44mm

    External power supply 134*185*28mm

    External power supply 200*104*28mm


    Product model

    TBC-PSF4316U-2PM

    TBC-PSF4324U2-2PM

    PoE port

    1-16port

    1-24port

    Voltage range

    AC220V/DC52V

    Port power

    IEEE802.3af/at standard  15.4W16W/25.5W30W

    Whole machine power

    300W/450W

    450W/800W

    UPLINK

    2*gigaibit  uplink RJ45 port

    +2*1.25G   uplink SFP  fiber port(fiber  complex)

    working temperature

    -20~+65

    exchange capacity

    40Gbps

    56Gbps

    Packet forwarding rate

    8.33Mpps

    9.52Mpps

    Product size

    1U19 Inch standard rack430*295*44mm   Desktop construction optional

  • Dimension (L×W×H)                 190*140*44mm
