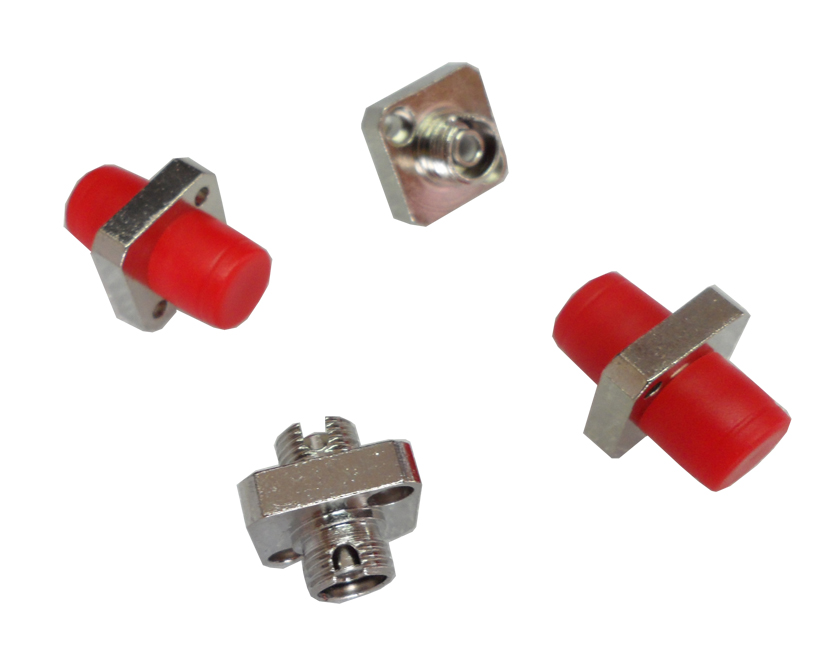

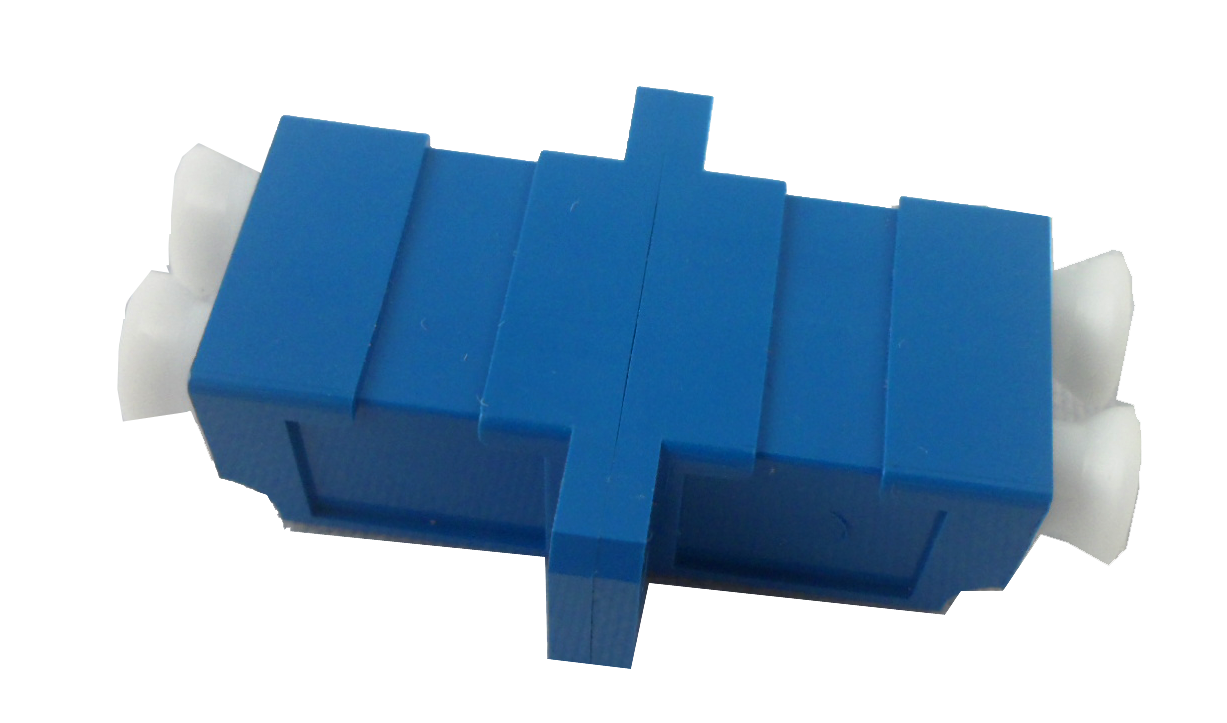

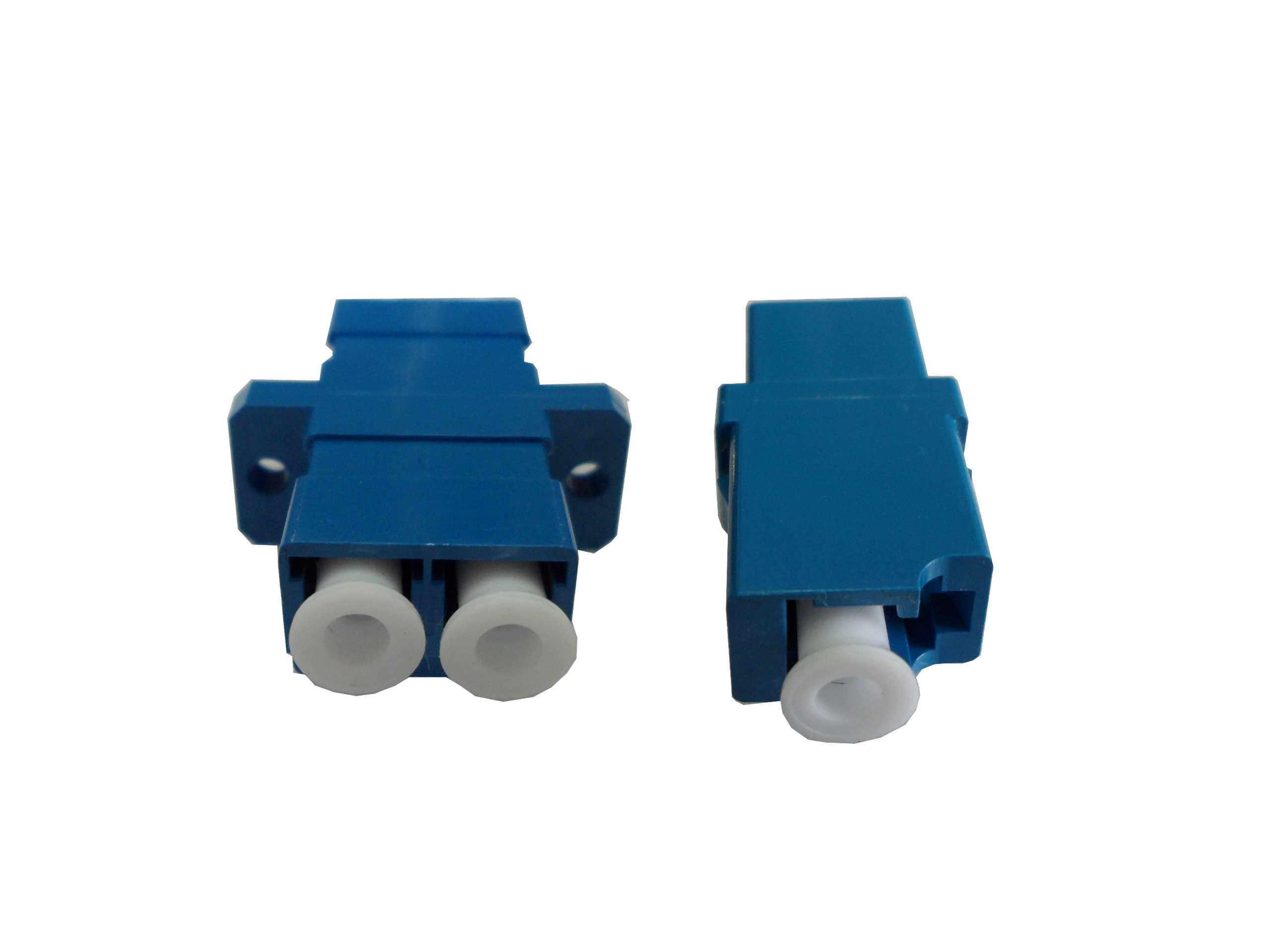

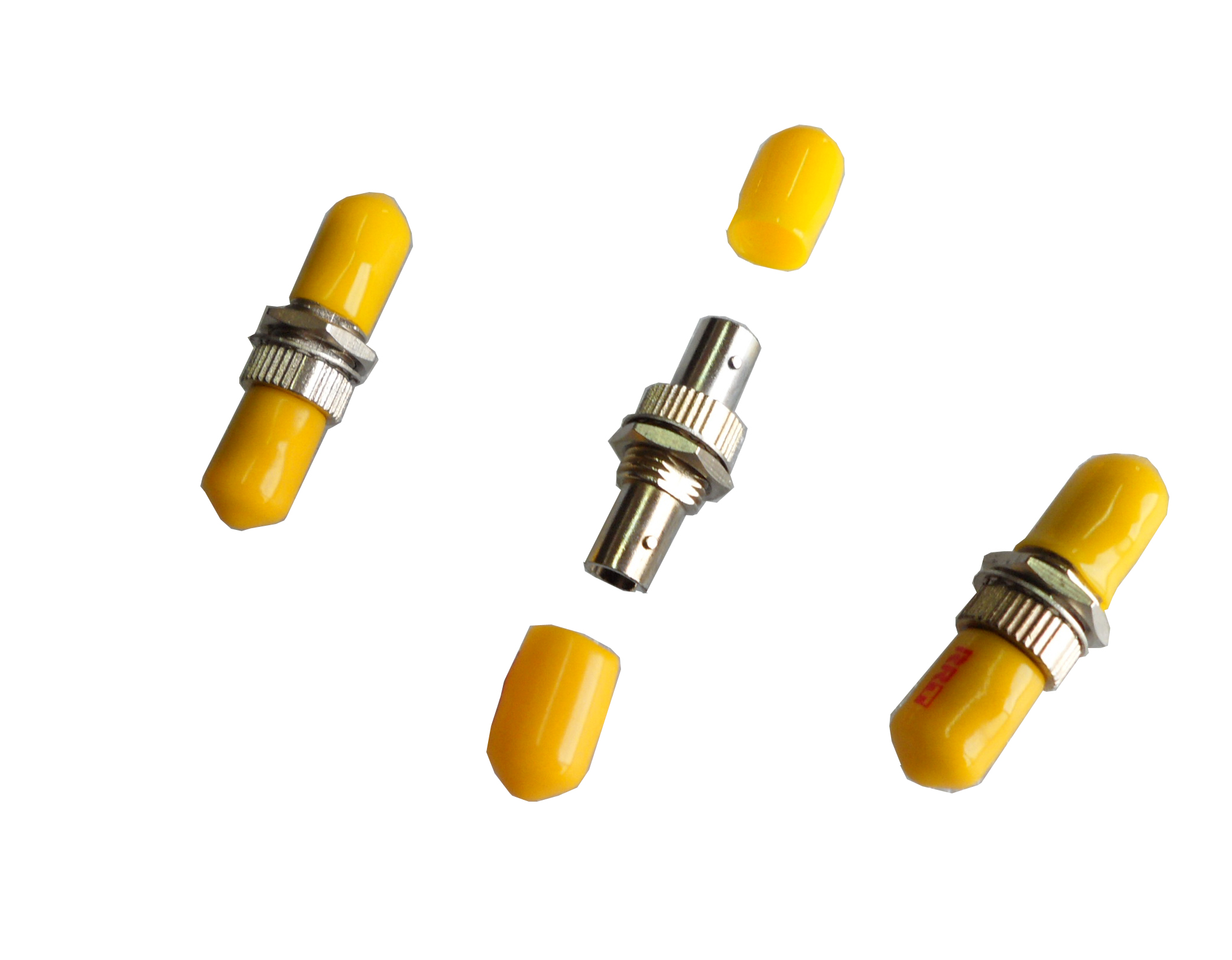

Fiber Optic Adapter

Fiber Optic Adapter (commonly known as the flange) is a fiber optic connector for connecting the activities of the full range of products, including FC, SC, ST, widely used in optical distribution frame (ODF), optical fiber communication equipment, instrumentation, Stable and reliable performance.


  • 产品特点
  • 技术参数
  • 产品尺寸
  • 订购信息
  • 典型应用
  • 资料下载
  • High-precision

    Good interchangeability

    Good repeatability

    Good wear resistance

    Good temperature characteristics


  • Product Type

     FC / PC

    FC / APC

    SC / PC

    SC / APC


    Insertion loss (dB)

    ≤ 0.20dB

    Repeatability (dB)

    ≤ 0.20dB

    Interchangeability (dB)

    ≤0.20dB

    Sleeve material

    ceramic

    Operating temperature (℃)

    -40 ~ +80

    -25 ~ +70

    -40 ~ +80

    Storage temperature (℃)

    -40 ~ +85

    Industry Standard

    Bellcore TA-NWT-001209


  • (1) optical fiber communication system

    (2) optical access network

    (3) Optical data transmission

    (4) Fiber CATV

    (5) Optical fiber sensor
