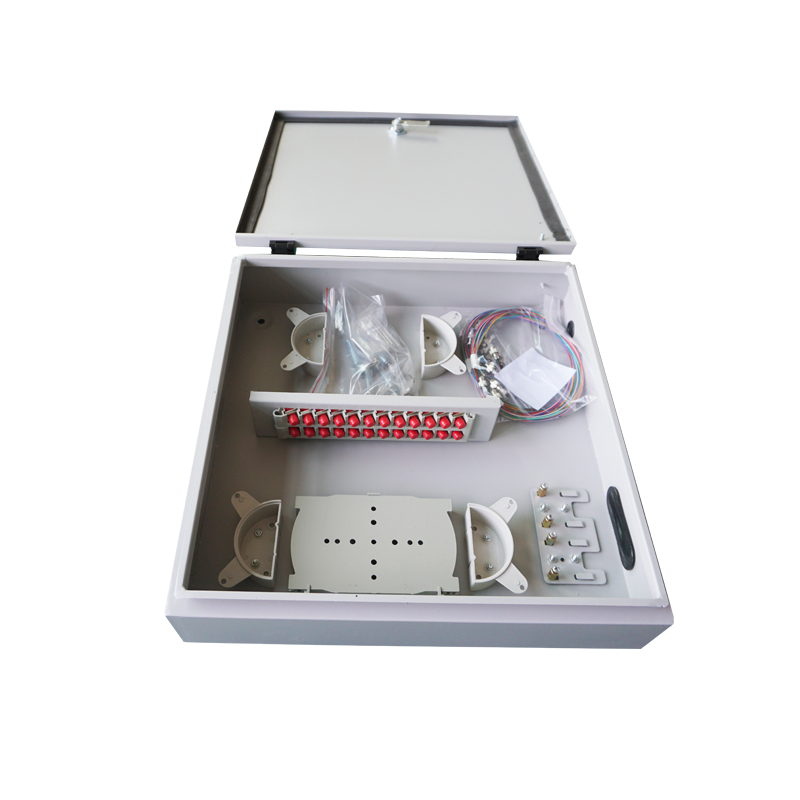

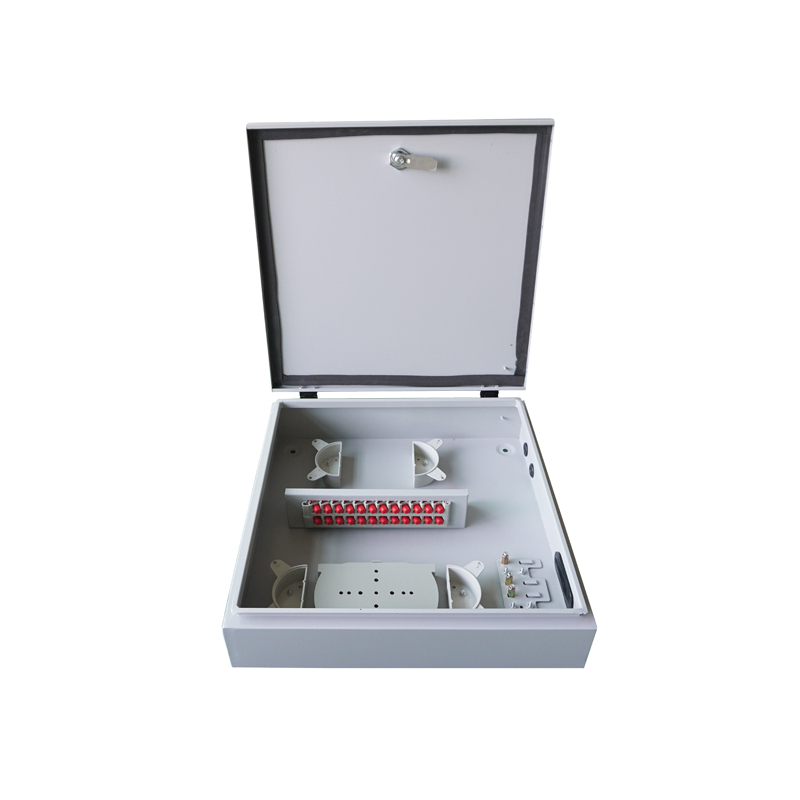

Outdoor Wall-mount Fiber Optic Distribution Frame

Outdoor Wall-mount Fiber Optic Distribution Frame is mainly used for connecting the outdoor optical cables, optical patch cords and optical pigtails. It can be wall mounted or pole mounted, and facilitates the test and refit of the lines.


  • 产品特点
  • 技术参数
  • 产品尺寸
  • 订购信息
  • 典型应用
  • 资料下载
  • With steel plates can manage both single fiber and ribbon & bundle fiber cables;

    FC, LC, SC, ST output interfaces optional;

    Large working space to integrate the pigtail, cables and adapters;

    Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite, easy for operation;

    Special design ensures the excess fiber cords and pigtails in good order;

    Inner components as follows:

    ² Fiber Optic Splice Tray: storing fiber connectors (together with the protective components) and the spare fibers

    ² Fixing Device: used for fixing the fiber protective tubes, the fiber reinforced cores and the distribution pigtails

    ² The brim of the box is sealed



  • Fiber Quantity

    Dimension(cm)

    Weight(Kg)

    ODF-OW96

    96

    55x48x26.7

    14

    ODF-OW72

    72

    56 x 48 x 21.2

    12

    ODF-OW48

    48

    46.5x 38.3x 15.5

    7

    ODF-OW24

    24

    46.5x 38.3x 11

    6.3

    ODF-OW12

    12

    46.5x 38.3x 11

    6.3



  • Fiber Quantity

    Dimension(cm)

    Weight(Kg)

    ODF-OW96

    96

    55x48x26.7

    14

    ODF-OW72

    72

    56 x 48 x 21.2

    12

    ODF-OW48

    48

    46.5x 38.3x 15.5

    7

    ODF-OW24

    24

    46.5x 38.3x 11

    6.3

    ODF-OW12

    12

    46.5x 38.3x 11

    6.3


  • ODFO W 12



    Name: “ODF”: optic distribution frame

     Type: “O”: outdoor using; “W”: wall-mount type

    Fiber quantity: “12”: 12 cores


  • Telecommunications subscriber loop

    Fiber to the home (FTTH)

    LAN/ WAN

    CATV
