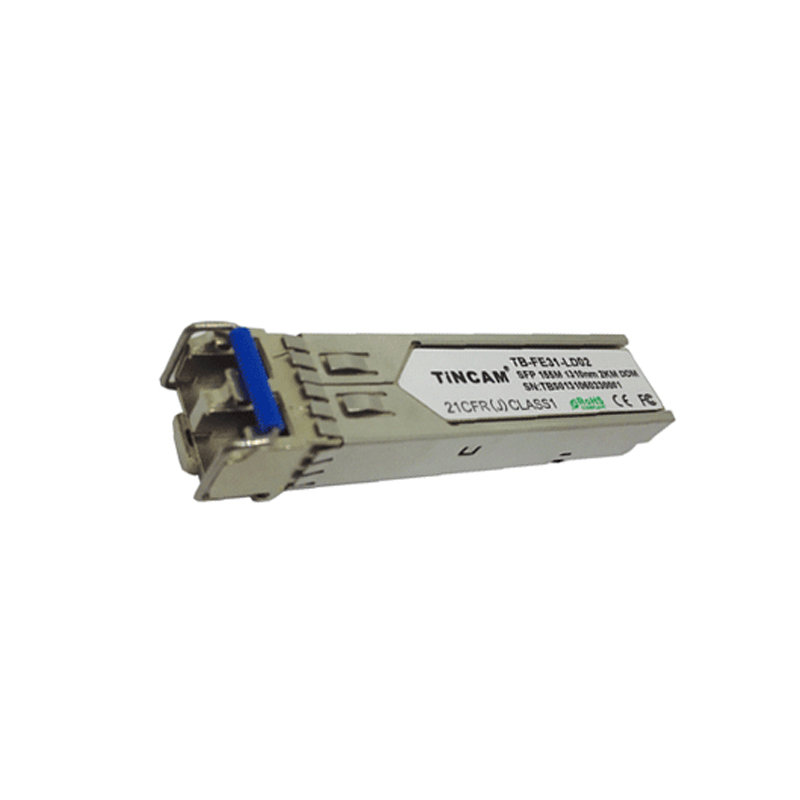

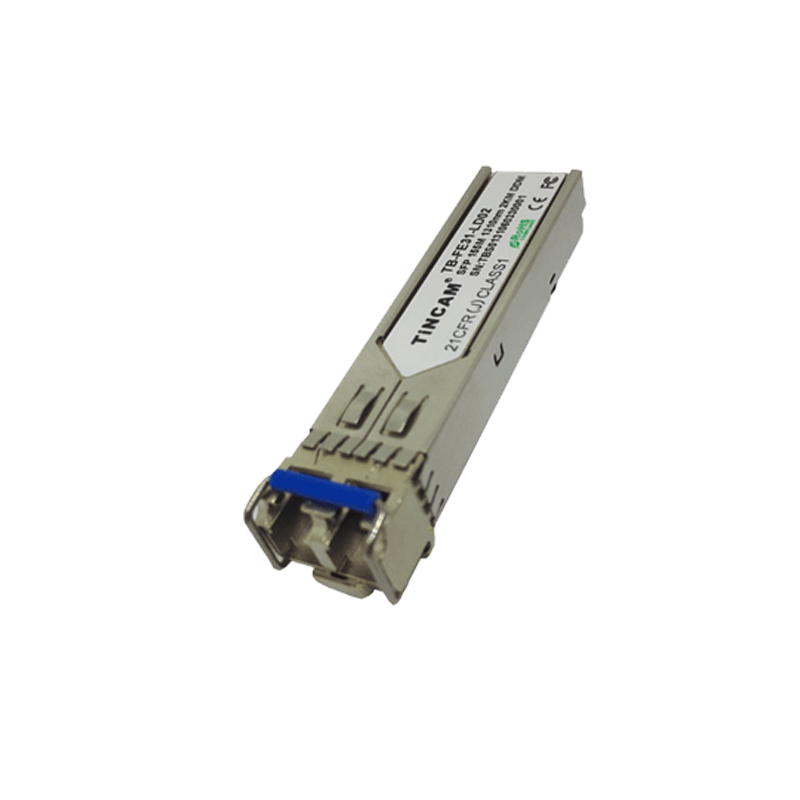

● Transceiver unit with independent

● 1310nm FP Laser diode transmitter

● InGaAs PIN photodiode receiver

● Up to 155Mbps data rate operation

● Up to 2km on 9/125μm SMF

● Standard serial ID information compliant with SFP MSA

● Digital Diagnostic Monitor Interface

● Very low EMI and excellent ESD protection

● +3.3V single power supply

● RoHS compliant

●Case operating temperature

Commercial: 0°C to +70°C

Extended: -10°C to +80°C

Industrial: -40°C to +85°C

General Operating Characteristics

Electrical Input/Output Characteristics

● Transmitter

● Receiver

Note 1) TD+/- are internally AC coupled with 100Ω differential termination inside the module.

Note 2) Tx Fault and Rx LOS are open collector outputs, which should be pulled up with 4.7k to 10kΩ resistors on the host board. Pull up voltage between 2.0V and Vcc+0.3V.

Note 3) RD+/- outputs are internally AC coupled, and should be terminated with 100Ω (differential) at the user SERDES.

Optical Characteristics

● Transmitter

● Receiver

Note 1) Measured at 155 Mb/s with PRBS 2²³ – 1 NRZ test pattern.

Note 2) Unfiltered, measured with a PRBS 2²³-1 test pattern @155Mbps

Note 3) Measured at 155 Mb/s with PRBS 2²³ – 1 NRZ test pattern for BER < 1x10^-10

●SDH STM-1, S-1.1,L-1.1, L-1.2

●SONET OC-3 IR1,LR1,LR2

●Other optical transmission systems
