Operating Wavelength(NM)

1260~1650

Fiber Type

G657A or customer specified

Insertion Loss (dB)

3.8/4.0

7.1/7.3

10.2/10.5

13.5/13.7

16.5/16.9

20.5/21.0

Loss Uniformity (dB)

0.4

0.6

0.8

1.2

1.5

2.0

Return Loss (dB)

55/50

55/50

55/50

55/50

55/50

55/50

Polarization Dependent Loss(dB)

0.2

0.2

0.2

0.25

0.3

0.35

Directivity (dB)

55

55

55

55

55

55

Wavelength Dependent Loss (dB)

0.3

0.3

0.3

0.5

0.5

0.5

Temperature Stability (-40~85°C) (dB)

0.4

0.4

0.4

0.5

0.5

0.5

Type of Connector

Customer specified

Operating Temperature (°C )

-40~85

Storage Temperature  (°C )

-40-85

Device Packaging Size (mm)(L×W×H)

40×4×4

40×4×4

40×4×4

50×4×4

50×7×4

60×12×4

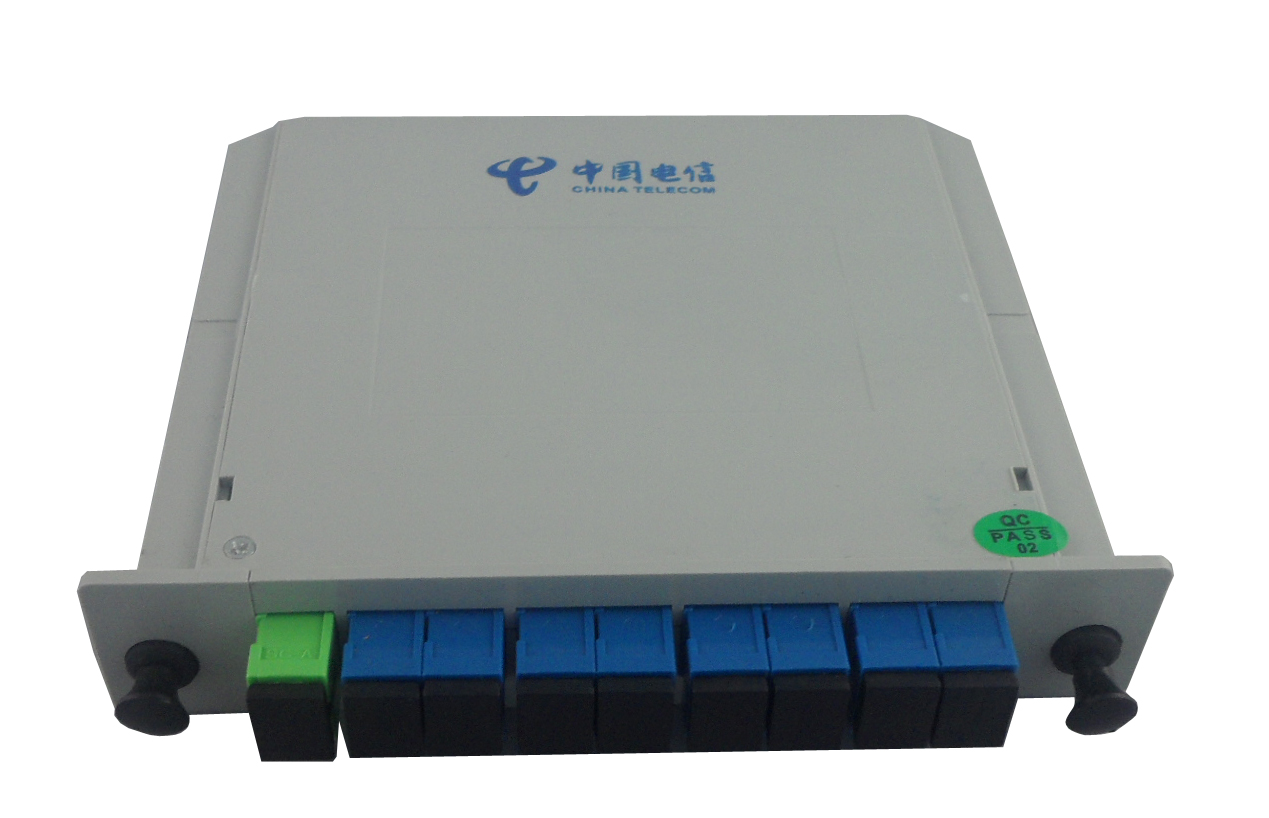

Cassette Module Size (mm)(L×W×H)

100×80×10

100×80×10

100×80×10

120×80×18

120×80×18

140×115×18

Macro Model Size (mm)(L×W×H)

60×7×4

60×7×4

60×7×4

60×12×4

80×20×6

100×40×6
