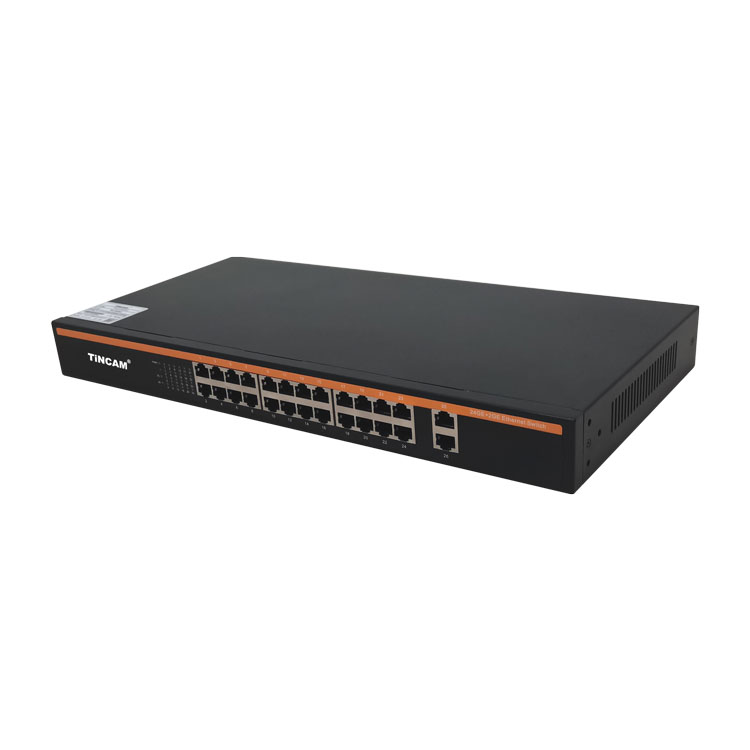

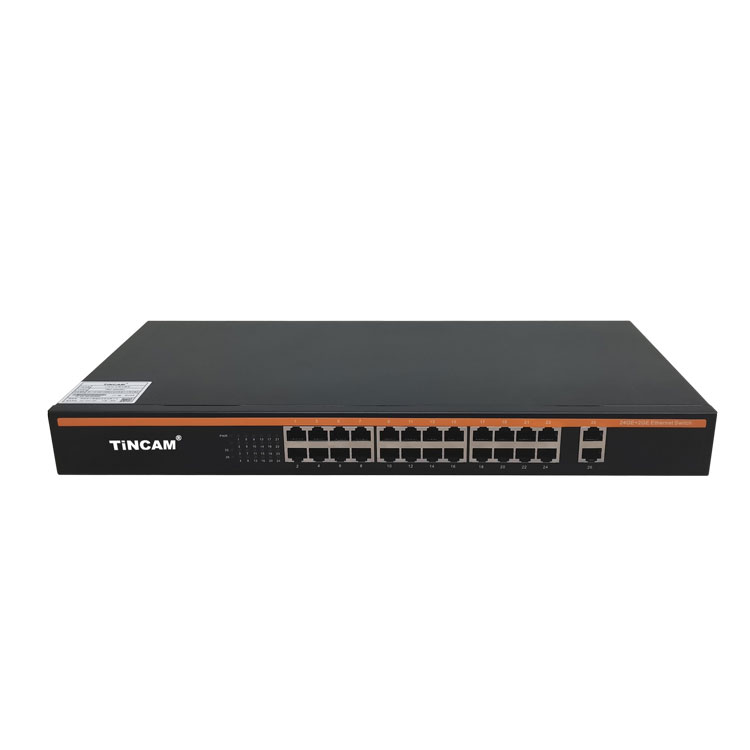

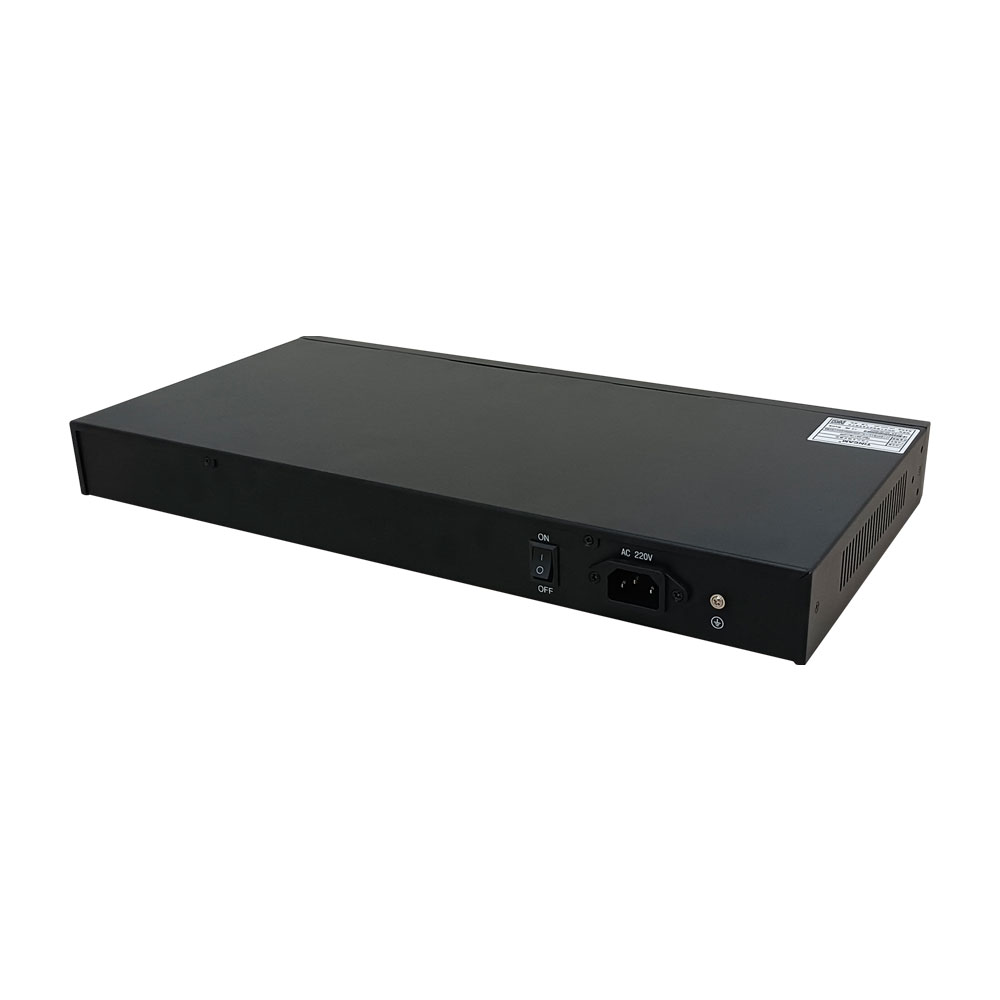

26-Port 10/100/1000M Ethernet Switch

TBC-S5026U series switch is based on our company launched a new generation of high-performance, low-power, fanless design, RoHS compliant, meet the green requirements of the two small and medium-sized enterprise switches. Can be widely applied to SMEs, small offices, Internet cafes, hotels, schools, families and other applications.


  • 产品特点
  • 技术参数
  • 产品尺寸
  • 订购信息
  • 典型应用
  • 资料下载
    • Comply with IEEE802.3, IEEE802.3u and 802.3ab standard;

    • Each port supports full-duplex flow control and half-duplex back pressure flow control;

    • 26*10/100/1000Mbps auto-adaptive RJ45 port, support Auto-MDI/MDIX;

    • All ports support half / full duplex mode automatically adapt;

    • Using storage - forwarding exchange mode;

    • Support MAC address self-learning;

    • Dynamic LED indicator shows the working status of the equipment and provides simple troubleshooting;

    • 19-inch iron shell, standard rack design;


  • Standard

    IEEE 802.3, IEEE 802.3u,IEEE 802.3ab,IEEE 802.3ab

    Fixed port

    26*10/100/1000M RJ45 port

    Forwarding rate

    10Mbps:14,880pps

    100Mbps : 148800pps

    1000Mbps :1488000pps

    LED indicators

    Power, Link / Act 1- 24, Speed 1-24

    Network cable type

    10Base-T: CAT3/4/5 UTP (≤100m)

    100Base-TX:CAT 5 UTP(≤100m)

    1000Base-T: CAT5e UTP (≤100m)

    Exchange capacity

    48Gbps

    MAC address table

    8K

    Temperature

    Operation temperature : 0 ~40℃

    Storage temperature : -40℃~70℃

    Humidity

    Operation humidity :10%~90% ,non-condensing

    Storage humidity :5%~95%,non-condensing

    Power consumption

    < 30W

    Power input

    100V~240VAC,50/60Hz

    Cooling method

    Active cooling fan

    Packing list

     power cord

    full Gigabit Ethernet switch

    User Manual (including certificate and warranty card)

    Mounting bracket and screws

    Ottomans

    Product dimension

    430x210x45mm


  • 430x210x44mm
