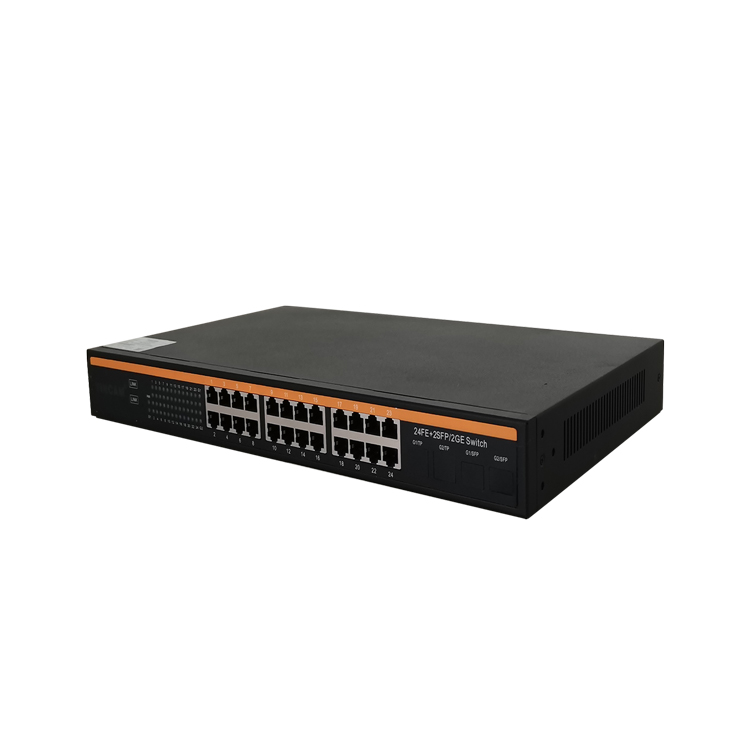

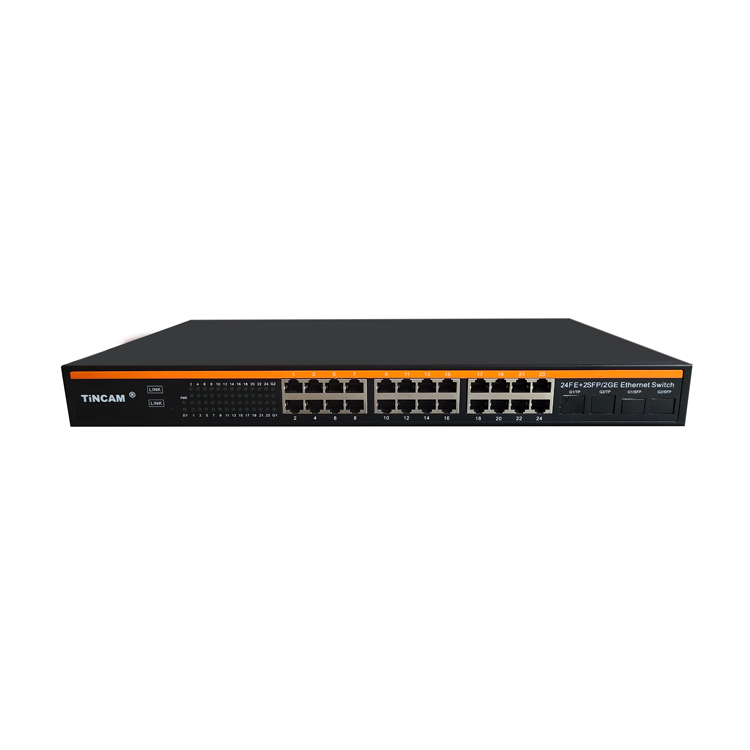

24-port 10/100M Ethernet Switch

TBC-S4024N series switch is based on our company launched a new generation of high-performance, low-power, fanless design, RoHS compliant, meet the green requirements of the two small and medium-sized enterprise switches. Can be widely applied to SMEs, small offices, Internet cafes, hotels, schools, families and other applications.


  • 产品特点
  • 技术参数
  • 产品尺寸
  • 订购信息
  • 典型应用
  • 资料下载
  • IEEE802.3 10BASE-T and IEEE802.3u 100BASE-TX network standards;

    24 *10/100M UTP / STP interface;

    Support auto flip port (Auto MDI / MDIX);

    10M / 100M dual-speed adaptive;

    Support full duplex / half duplex working mode;

    Support IEEE802.3x full duplex flow control and back pressure half duplex flow control;

    Dynamic LED indicator to provide simple working status prompt and troubleshooting;

    Support MAC address self-learning function;

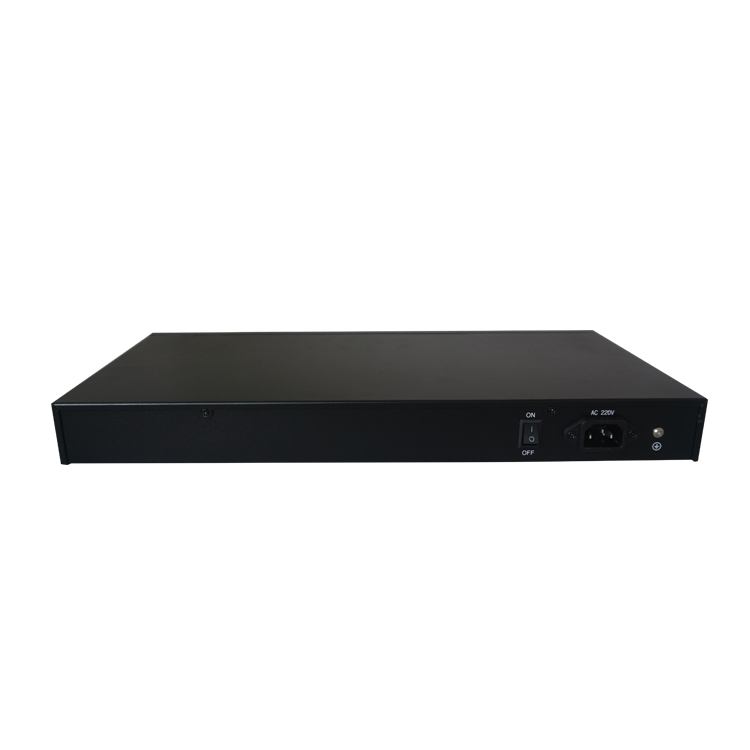

    Built-in universal power supply, 19-inch standard rack steel structure design;


  • Standard

    IEEE 802.3, IEEE 802.3u,IEEE 802.3ab,IEEE 802.3ab

    Protocol

    CSMA/CD

    Topology

     star

    Network cable type

    10Base-T: CAT3/4/5 UTP (≤100m)

    100Base-TX:CAT 5 UTP(≤100m)

    LED indicators

    Power, 100Mbps speed indicator, Link / Act  indicator

    Exchange method

    Store-and-Forward, wire-speed filtering and forwarding

    Power

    100V~260VAC,

    Filtering and forwarding rate

    10Mbps:14,880pps

    100Mbps : 148800pps

    Temperature

    Operation temperature : 0 ~40℃

    Storage temperature : -40℃~70℃

    Humidity

    Operation humidity :10%~90% ,non-condensing

    Storage humidity :5%~95%,non-condensing
