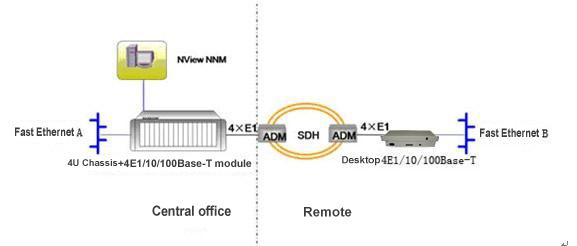

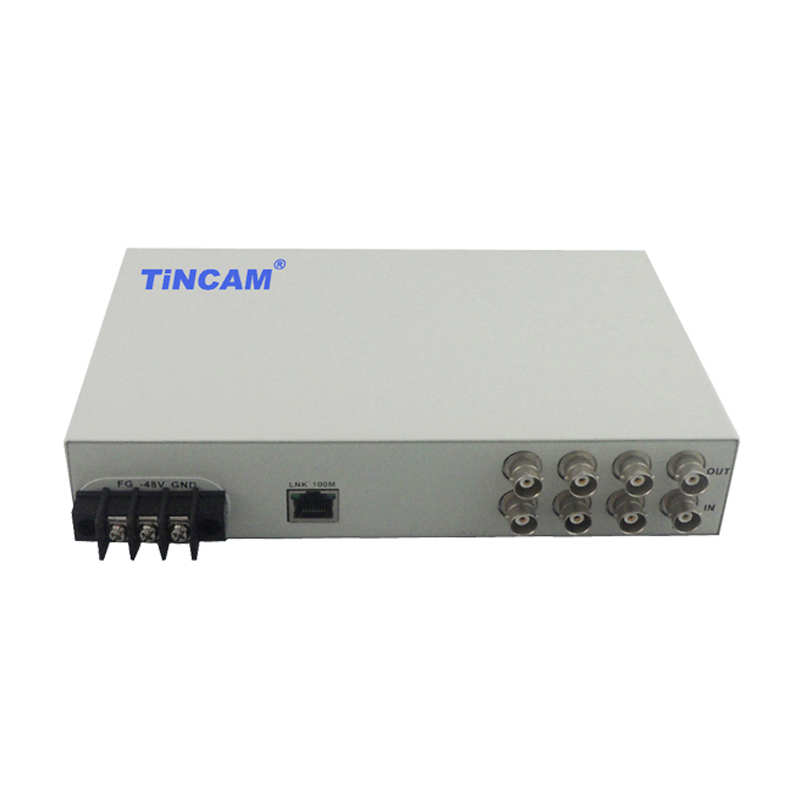

The TBC-CT6004 series interface converters use reverse multiplexing technology, which bundles multiple E1 circuits to transmit Ethernet data of 4E1-10/100BaseT and implements the conversion of 1-4 E1 channels to Ethernet interfaces; This converter can send and receive E1 channel signal point-to-point transmission RJ45 interface, E1 channel and Ethernet interconnection. Unlike a typical remote bridge, this converter supports flexible configuration of 1 to 4 E1 channels, automatically detects the number of E1s and selects available E1s, and allows some transmission delay differences between the E1 circuits. Single-line rate is 1920Kbit/s, 4-channel bandwidth up to 7680Kbit/s. When used in 10/100Mbps full/half duplex mode, the device can be connected to an Ethernet switch or hub and fully utilize the existing large number of E1 circuit resources in the telecommunications network to extend the transmission range and application range of the Ethernet. It is a good solution for Ethernet broadband access. This product can be used for LAN interconnection, central office interconnection, video on demand, remote monitoring, E1 interface card switch and other fields.
