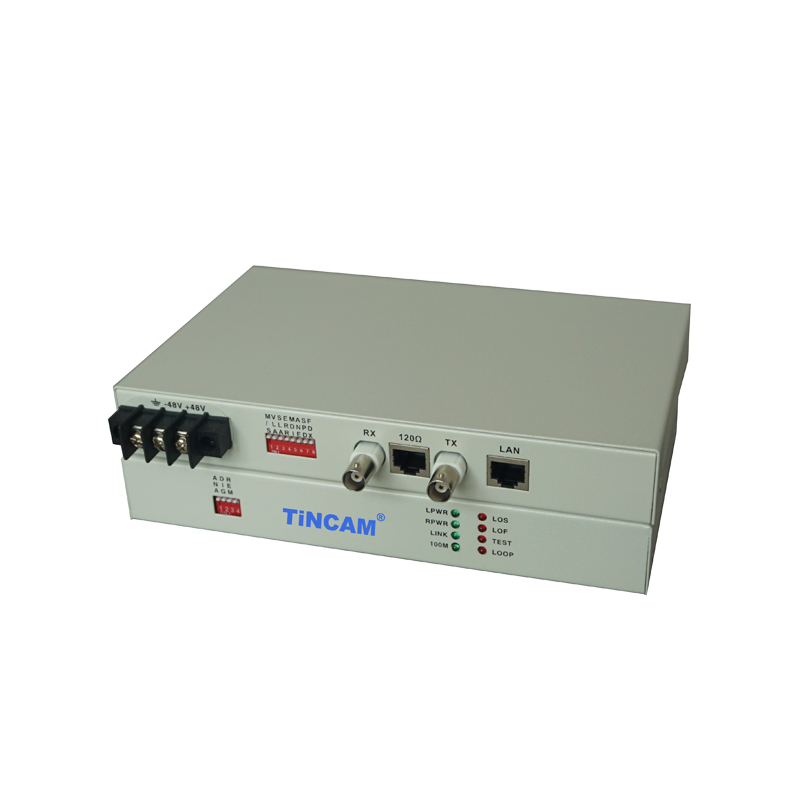

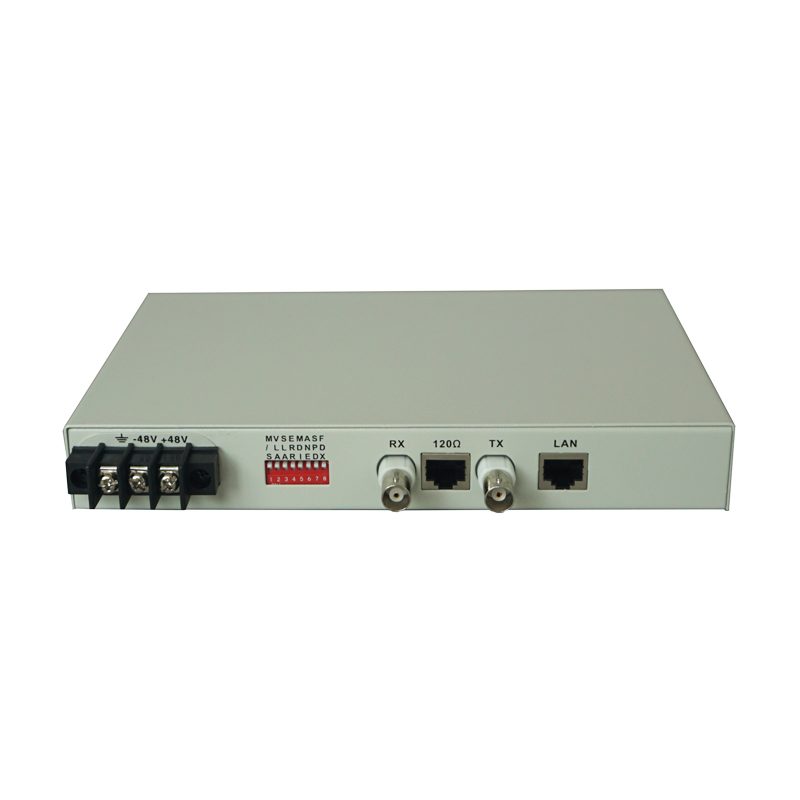

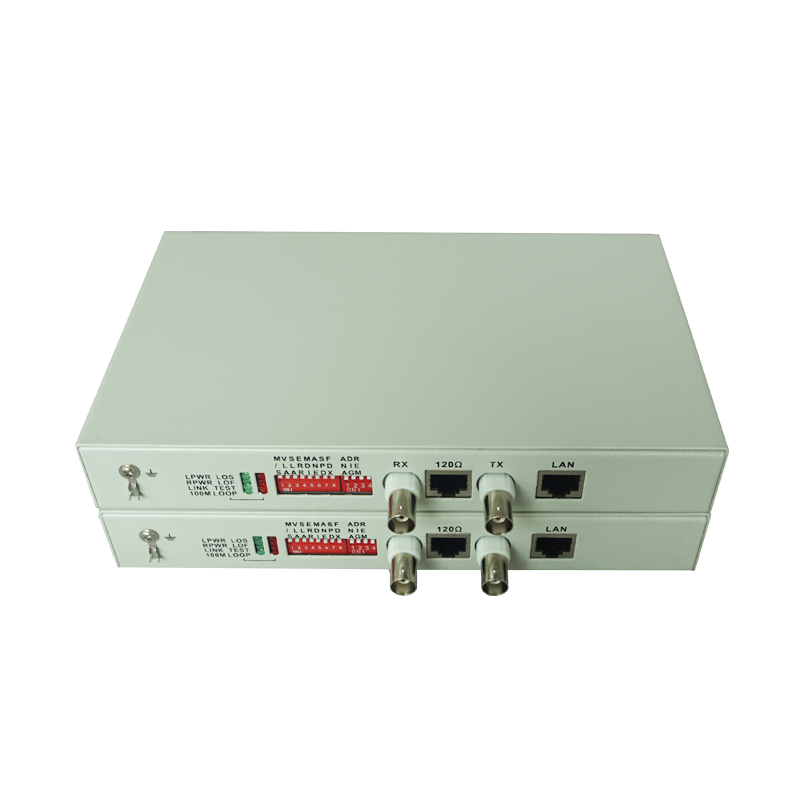

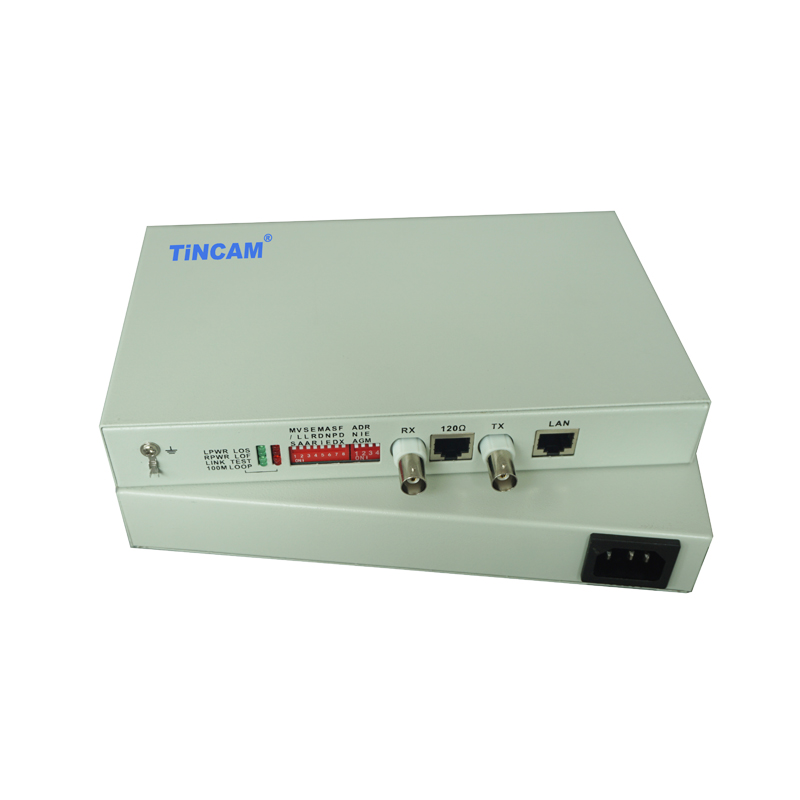

The TBC-CT6002 series E1 to ETH protocol converter uses E1 communication lines to provide the Internet with a data transmission channel with a bandwidth of 1.92M so that the 2 LANs can be connected to two network segments of a local area network by using a transmission device such as an optical transceiver and the same IP address can be used. Automatically learn MAC address, according to the address table to filter the data packet (this function can be closed), the TCP / IP protocol transparent.
The protocol converter takes advantage of the spare time slots in E1 to arbitrarily extract the time slots from the G703 / E1 and provides the Internet with data transmission channels with a bandwidth of N*64K (N=1~ 32);
This protocol converter can convert E1 channels of SDH, PDH, microwave, satellite and other transmission networks into 10/100BaseT data channels. It is suitable for all kinds of data communication network and realizes matching and interconnection between different network equipment interfaces, such as routers, Ethernet switches and other network interfaces, so as to effectively solve the extension problem of Ethernet IP data.
The device has a perfect self-test function and a variety of test functions, allowing users to easily and quickly integrate this device into the network. Widely used in WAN and LAN networking, monitoring and other occasions
