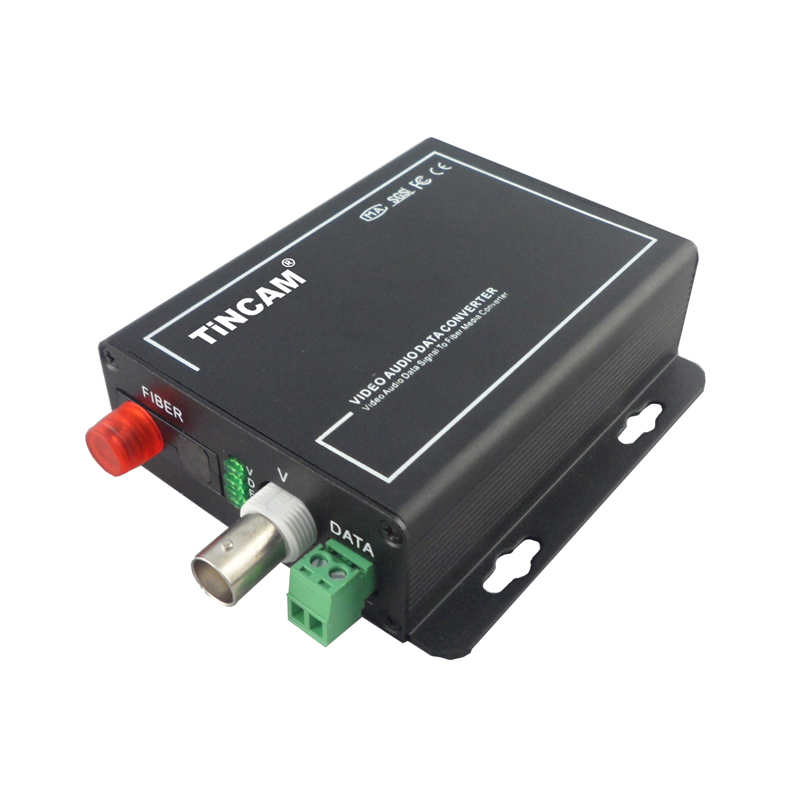

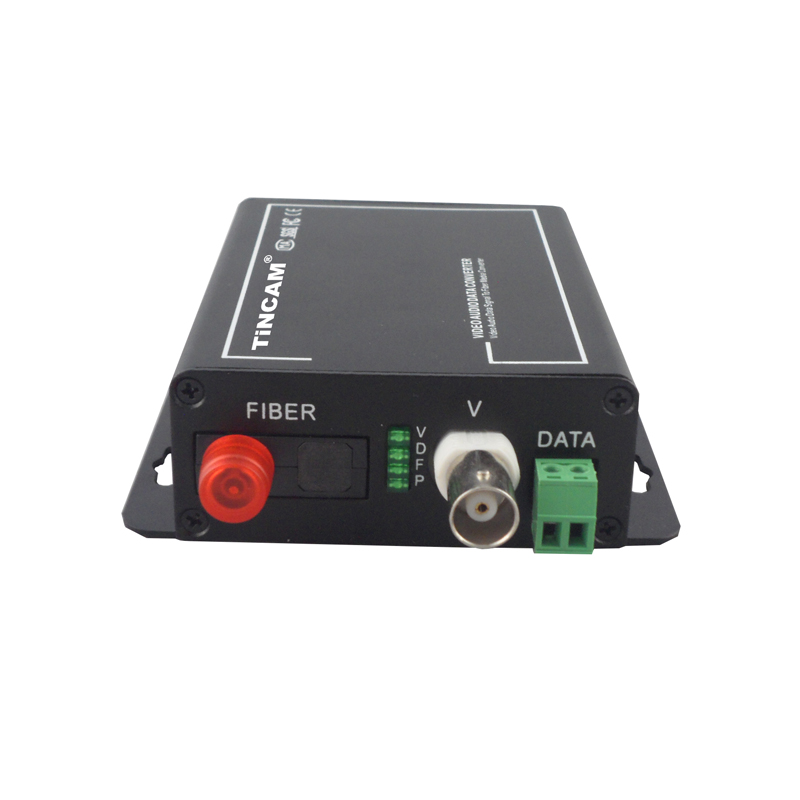

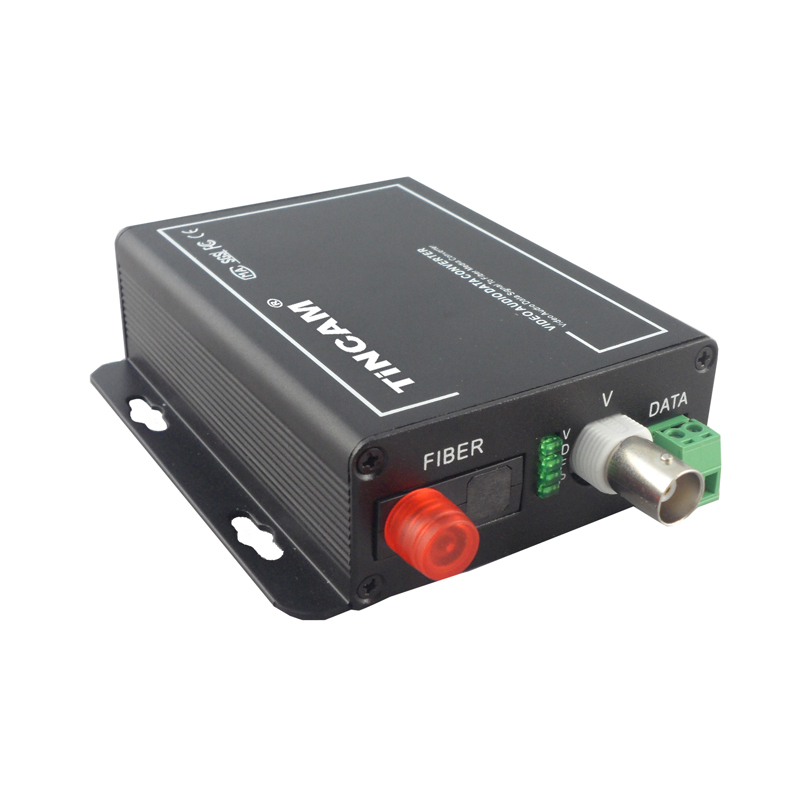

1-Channel Video & 1-Channel Reverse RS485 Data Optical Transceiver

The TBC-SF1V1FD-S20T/R series digital video optical transceiver has a full-featured all-digital video optical transmission equipment that can transmit 1-Channel high-quality (8Bit or 10Bit) uncompressed video information and 1-Channel control signal on one fiber at the same time, optional audio、 data、 switch volume. This product is convenient for field wiring, no need for any photoelectric adjustment; with power, optical and data loop instructions; optional standalone desktop installation and modular rack-mounted two structural forms. The TBC series digital optical products are mainly used for long-distance optical fiber transmission monitoring system, such as security monitoring, highways, electronic police, automation, intelligent community, customs, electricity, water, petroleum, chemical and many other fields.


  • 产品特点
  • 技术参数
  • 产品尺寸
  • 订购信息
  • 典型应用
  • 资料下载

  • Product Features：

    •  8/10-bit digital encoding and uncompressed video transmission; support any high-resolution video signal;

    • 5Hz-10MHz video channel; automatically compatible with PAL, NTSC, SECAM video system with APC circuit, the output optical power is constant, the dynamic range is large;

    • use the process Without downtime maintenance in the process of using, can be hot-swappable; Gigabit fiber transmission, large capacity, easy to upgrade;

    • Power and other parameters status indicator LED can monitor the operation status of the system;

    • support video lossless regenerative relay; advanced adaptive technology, does not require on-site electrical or optical adjustment;industrial modular design makes the equipment reliable and flexible;

    • Can automatically restore the overload protection; unique full built-in power supply design


  • Parameter

    Application environment: security system, TV medical, high-fidelity video and video conference call, real-time monitoring and control system, intelligent traffic monitoring system (ITS), remote multimedia teaching / campus monitoring, long-distance radio and television transmission system

    Optical characteristics:

    Optical interface: SC/FC/ST

    Wavelength: single mode 1310nm/1550nm ；multimode 850nm/1310nm

    Fiber; multimode, single mode;

    Transmission power transmission: -9dBm/-5dBm

    Transmission length: 0-100km;

    Receiving sensitivity: better than -36dBm

    Features: Can be customized according to user needs for different interface types.

    Video characteristics:

    Channel：1-Channel video

    Video interface form: BNC

    Video input/output impedance: 75（unbalanced)

    Video input / output voltage: 1Vp-p

    Video bandwidth: 8MHz

    Video sampling: 15MHz high speed sampling

    Differential gain:(10% -90% APL) DG<1% (typical)

    Differential phase:(10% -90% APL) DP<0.7o (typical)

    Video signal to noise ratio(weighted):S/N ≥ 70dB (maximum optical link loss)

    Data characteristics:

    Channel：1-Channel reverse data

    Data interface terminal: Standard industrial terminal block or RJ45

    Interface signal: RS-232, RS-422, RS-485, Man code / Biphase, switch signal;

    Audio characteristics:

    Audio channels: 1-Channel Bidirectional audio (optional)

    Each channel bandwidth: 20Hz ~ 20KHz;

    Sampling frequency: 96KHz

    Quantification level: 24bit;

    Input impedance (Line-in): 47KΩ / unbalanced

    Output impedance (Line-out): 10KΩ unbalanced

    Nominal input and output level: 2Vp-p; Total harmonic distortion: 0.1% (typical)

    Unbalanced Weighted Signal to Noise Ratio: 75dB (typical)

    Switch interface parameters:

    Response time: <0.5ms

    Switch interface: Optical MOS relay 350V/120mA

    Ambient temperature: -30 ℃ ~ 75 ℃;

    Storage temperature: -40 ℃ ~ 85 ℃

    Relative humidity: 0 ~ 95% (non-Condensing);

    Physical interface: RJ45

    Size: Standalone (225mm*200mm*40mm)

    Size: Card (standard 2U centralized management rack)

    Rated supply voltage: AC220V / 50Hz;

    Bit error rate: ≤10-9

    Internal power consumption: 1.5 W;

    MTBF: ≥105 hours


    Optical Characteristics：

    fiber type/

    parameter

    Fiber interface type

    Emission wavelength nm

    Transmit power dBm

    Receiver sensitivity dBm

    Light saturation dBm

    Optical loss dBm/km

    Transmission distance km

    Multi Mode

    SC/FC

    850

    -18.5~-14

    -35

    -8

    2

    0~2

    SC/FC

    1310

    -19.5~-16

    -36

    -9

    1

    0~3

    Single Mode

    SC/FC

    1310

    -15~-10

    -34

    -8

    0.5

    0~20

    SC/FC

    1310

    -12~-5

    -36

    -3

    0.5

    0~40

    SC/FC

    1550

    -5~0

    -38

    2

    0.25

    0~60


  • Size: Standalone (225mm*200mm*40mm)

    Size: Card (standard 2U centralized management rack)
