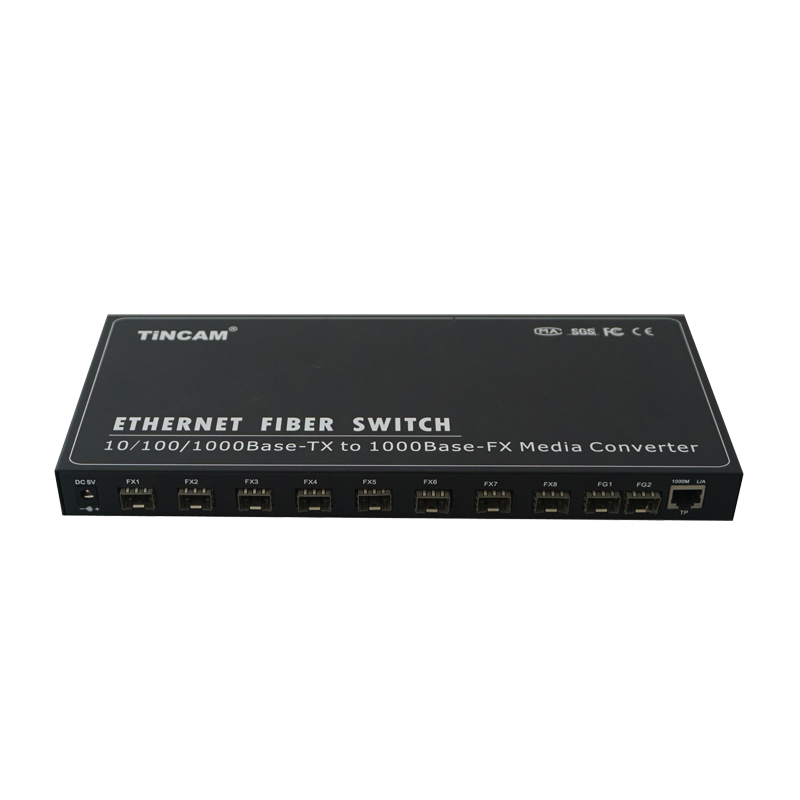

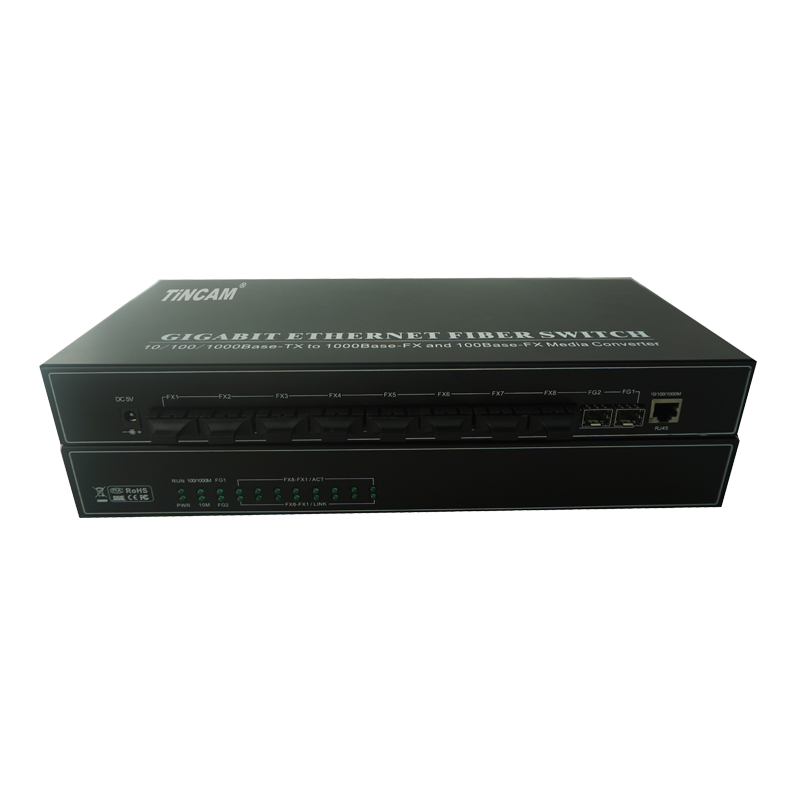

10/100/1000M single mode dual fiber 10 fiber ports & 1 RJ45 port fiber switch (External)

The TBC-MC3812E series Convergent core fiber switch is the conversion between the Ethernet interfaces to complete the front-end convergence, the configuration of 1*10/100/1000M Ethernet interface, eight Fast Ethernet port, two Gigabit SFP optical port, the Ethernet The transmission distance of the network is extended from 100 meters of the network cable to 120KM. Mature switching core, equipped with a variety of optical interfaces, hot-swappable, flexible, efficient, reliable and so on. For telecommunications broadcasting, bandwidth networks, millions of high-definition video surveillance and other needs of high-performance, high reliability network environment.


  • 产品特点
  • 技术参数
  • 产品尺寸
  • 订购信息
  • 典型应用
  • 资料下载
  • l 1*10/100/1000M adaptive Ethernet port and 8*10/100M optical ports (SC) and 2*10/100/1000M SFP optical ports;

    l Optical interface supports three kinds of fiber multimode dual fiber, single mode dual fiber, single mode single fiber ;

    l RJ45 electrical port can adapt to 10/100/1000M, full / half duplex mode;

    l RJ45 port supports straight or cross automatic identification (AUTO-MDIX);

    l SFP port supports 1000M full duplex mode;

    l Support flow control, can prevent broadcast storm;

    l Support up to 1632 bytes long packet;

    l Small power consumption (10W), less heat, good stability;

    l Optical port support electrical module, hot-swappable.


  • Standard Protocol

     IEEE802.3u/z/ab,10Base-T,100Base-TX,1000Base-T,1000Base-X

    Rate

    1Gbps

    Operation Mode

    Full /Half duplex mode

    Optical interface

    SC or LC (default LC interface)

    Physical interface

    RJ45 port

    Multi mode

    Suitable for optical fiber

    62.5/125,50/125,100/140µm

    Transmission distance

    550m  2Km

    Transmit power

    >-20~-14dBm

    wavelength



    850nm//1310nm

    Receiving sensitivity

    <-31dBm

    Single mode

    Suitable for optical fiber

    9/1258.3/1258.7/125 or 10/125µm

    Transmission distance

    25km

    40km

    60km

    80km

    120km

    Transmit power

    -12~-8dBm

    -8~-3dBm

    -3~0dBm

    -3~1dBm

    -3~2dBm

    wavelength



    1310nm

    1310nm

    1490nm /1550nm

    1490nm /1550nm

    1490nm /1550nm

    Receiving sensitivity

    < -32dBm

    < -34dBm

    < -34dBm

    < -38dBm

    < -38dBm

    Work Temperature

    -20 ℃ ~ +65 ℃ (Commercial ) - 40 ℃ ~ +85 ℃ (Industrial )

    Power Supply

    AC 100-260V  48VDC  (Internal power supply)

    Storage Temperature

    -40~+90

    Relative humidity

    5%~90% non-condensing

    MTBF (Hours)

    >100000

    Size

    477*163*45m (Standard 1U RACK)

    Certification

    FCC Part 15 , Class A, RoHS and CE Mark SGS


    Name

    Definition

      Description

    PWR

    Power Indicator

    ON when the power supply is turned on and in normal working status

    P1-P8

    Optical interface status indicator

    Bright : optic fiber cable is connected well

    L/A

    Rate indicator

    Bright : fiber optic transceivers are sending and receiving data,

    Blinking: twisted pair link is connected, the data is being transmitted

    1000M

    Rate indicator

    Bright: fiber transceivers operate at 1000M and in full duplex mode

    Off: operate at 100M

    Blinking, twisted pair link connectivity, data being transmitted


  • Size

    477*163*45m (Standard 1U RACK)
