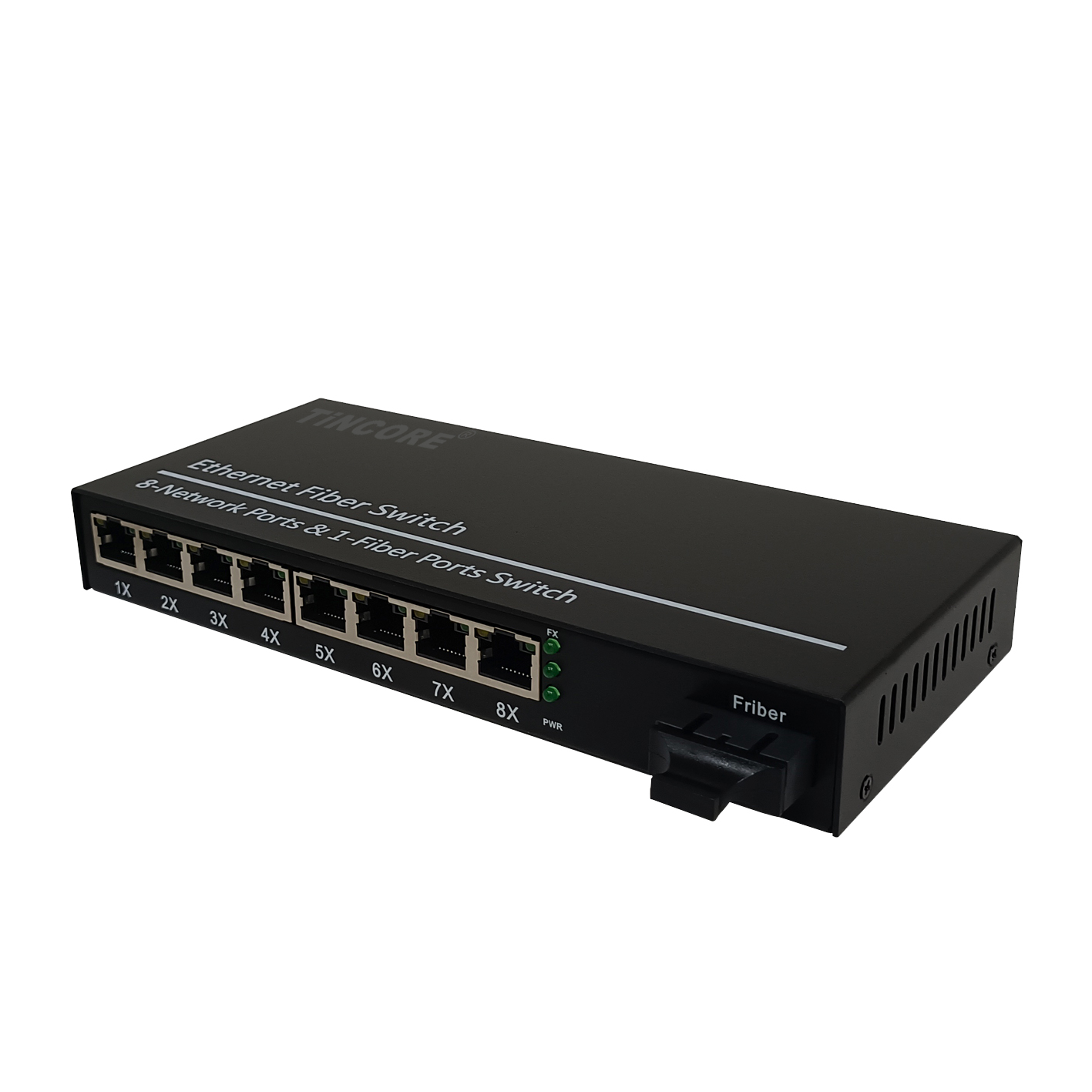

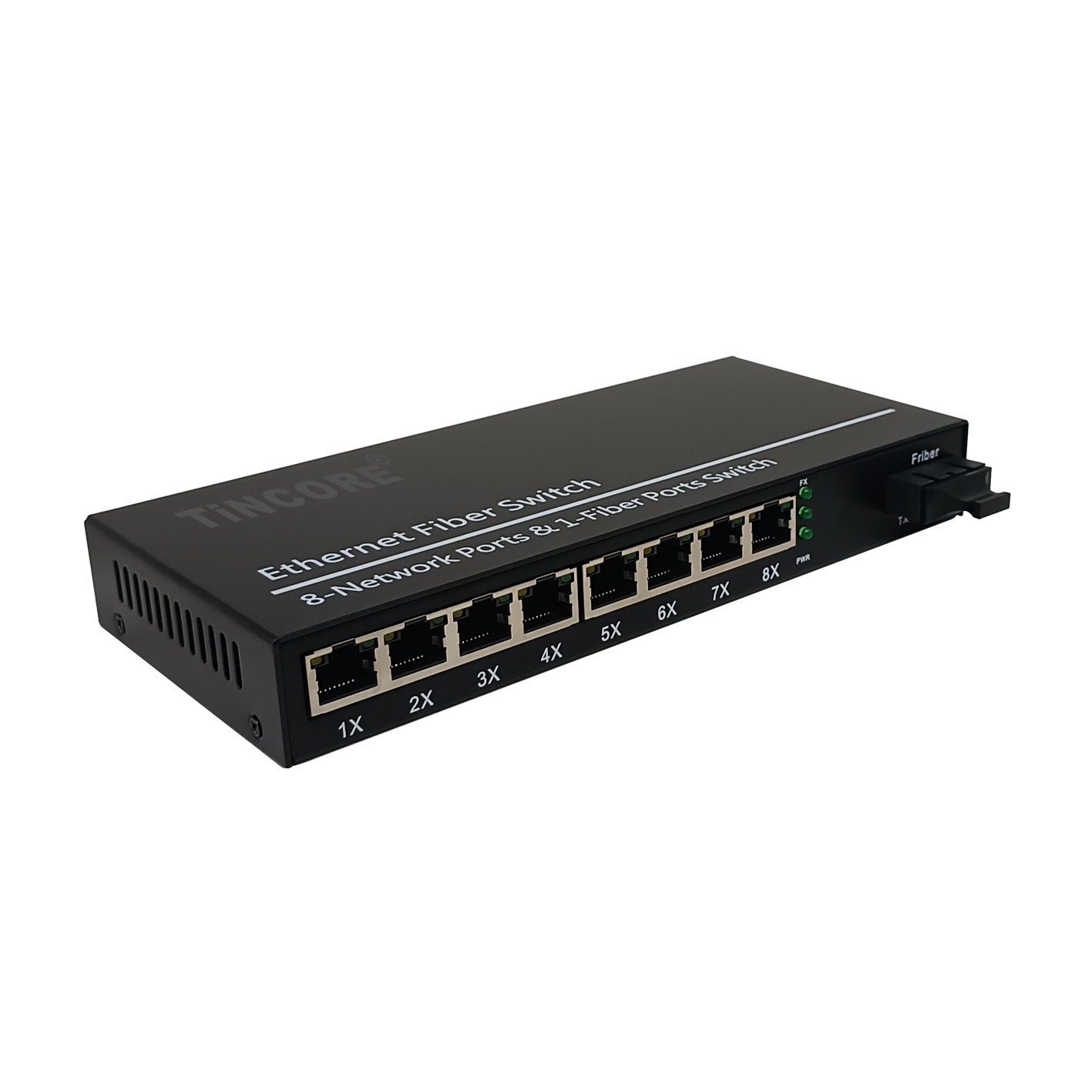

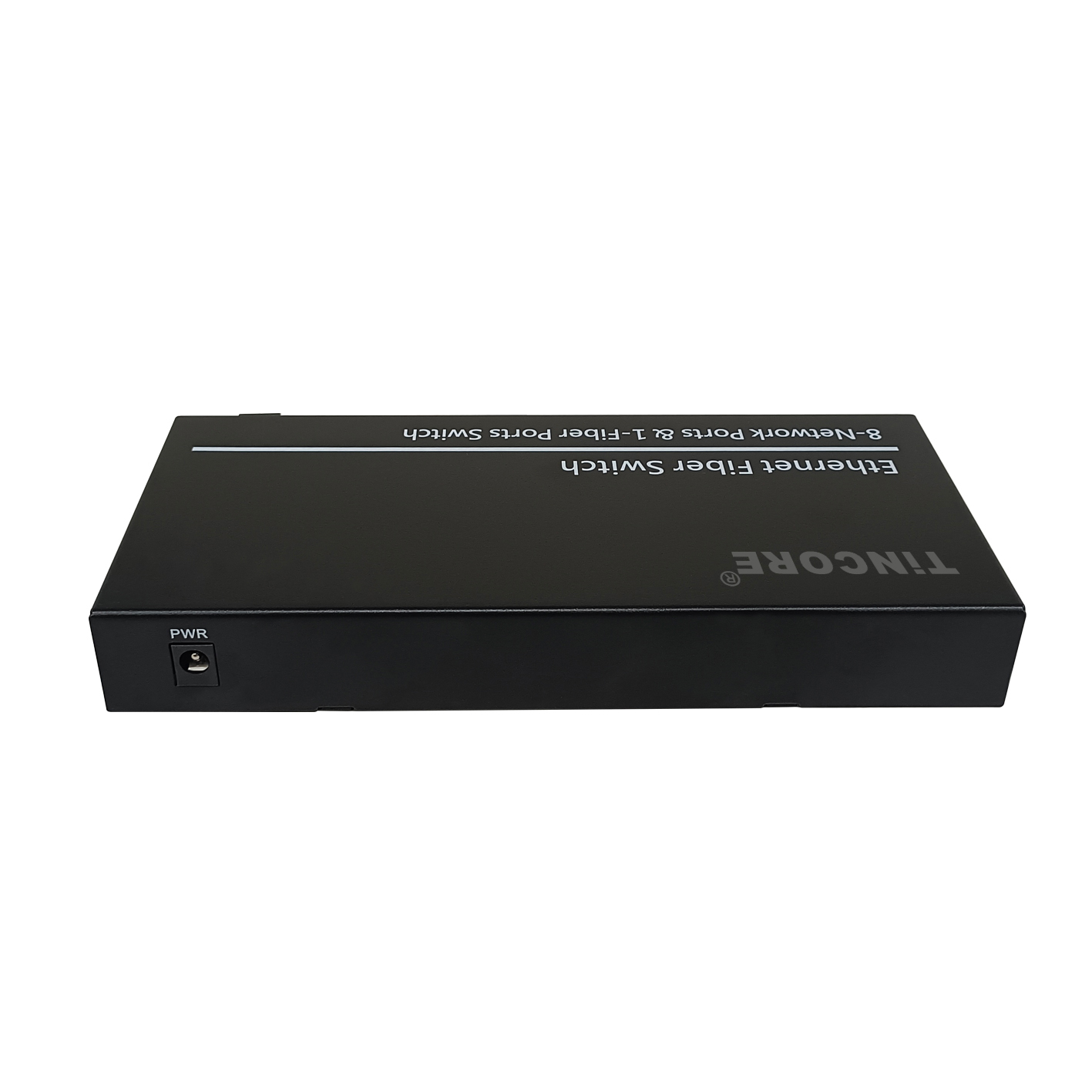

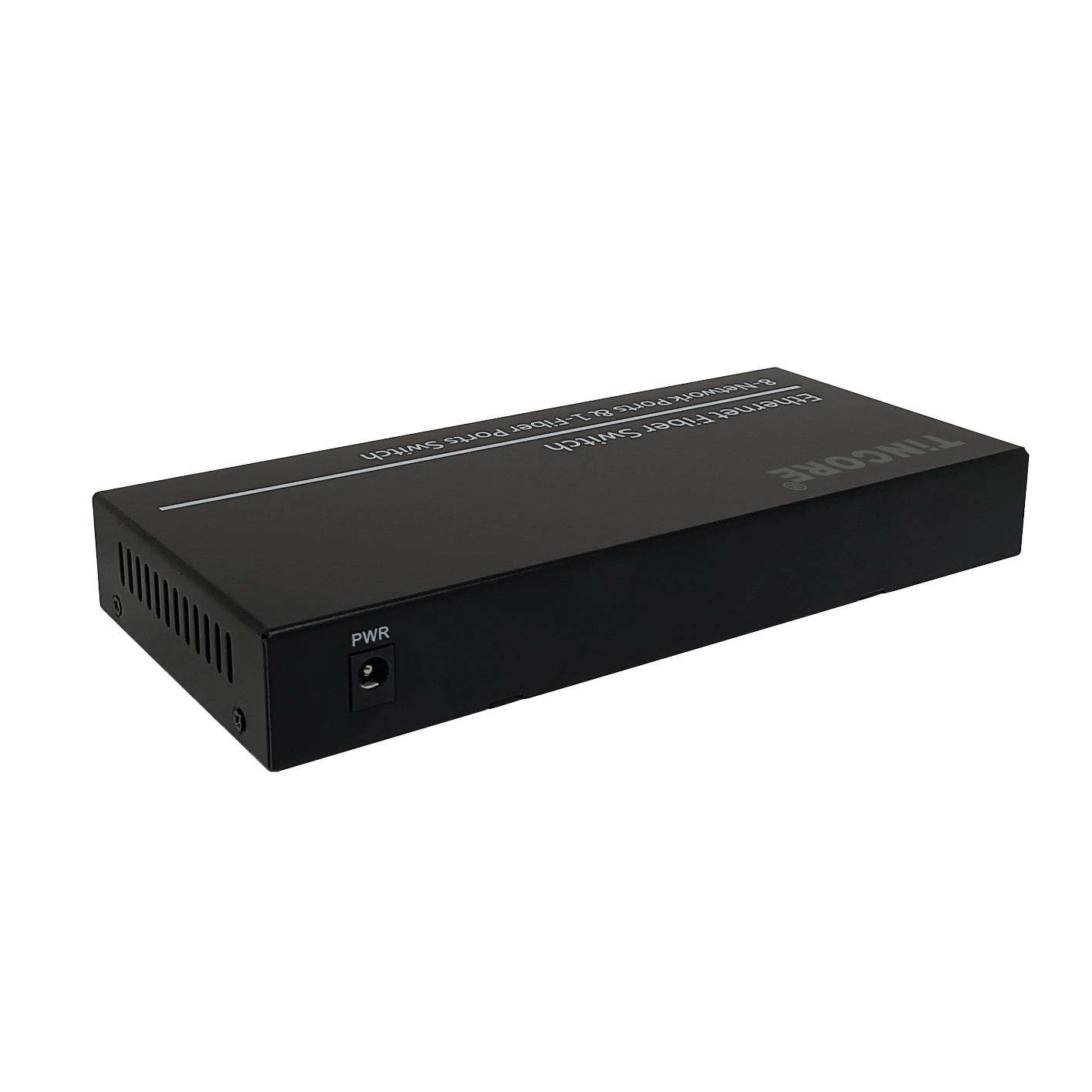

China Manufacturer 10/100/1000M single mode dual fiber 1 optical port+8 RJ45 ports fiber switch

The TCE-MD2718GED20 Series 10/100/1000Mbps 1 fiber port + 8 RJ45 ports Switch converts eight independent 10/100/1000Base-TX twisted pair electrical signals and one single 1000Base-FX optical signal to each other. It extends the network's reach from the 100M limit of copper to 120KM. By using switching and store-and-forward technology to enable data before the two network connections to the media, it greatly increases the fabric flexibility of Fiber Ethernet and Reduces the cost of the network set up to support dual-fiber multi-mode, dual-fiber single-mode, single-mode single-mode fiber and other optical transmission.


  • 产品特点
  • 技术参数
  • 产品尺寸
  • 订购信息
  • 典型应用
  • 资料下载
  • lStorage and forwarding capabilities to support rate adaptation and protocol translation;

    lAdaptive connection 10M100M and 1000M network and the network port supports full-duplex/ half-duplex adaptation and traffic control;

    lAutomatic detection and correction of incorrect poles on each port of a twisted pair;

    lData transfer rate (line speed) is 14,880 frames per second (10M);

    lData transfer rate (line speed) is 14,8800 frames per second (100M);

    lData transfer rate (line speed) is 14,88000 frames per second (1000M);

    lThe amount of power 5W;

    lSupport 12K effective MAC address table; MAC Supports MAC address learning and aging automatically;

    l8 MB packet buffer;


  • Standard Protocol

    IEEE 802.3u, IEEE 802.3Z, IEEE 802.3ab,10Base-T, 100Base-TX,1000Base-X

    Band Width

    RJ 45 Port : 8*10/100/1000M

    Optical Port: 1.25G

    Operation Mode

    Full /Half duplex mode

    Connectors

    UTP: RJ-45

    Fiber connector : SC/FC/ST/LC

    Multi mode

    Applicable optical fiber: 62.5/125,50/125,100/140μm

    Transmission distance: 550m 2Km

    Transmit power > -20 ~ -14dBm

    Wavelength :850nm / 1310nm

    Receiver sensitivity <-31dBm

    Single mode

    Applicable optical fiber: 9/125,8.3/125,8.7/125 ,10/125µm

    Transmission distance

    25km

    40km

    60km

    80km

    120km

    Transmit power

    -12~-8dBm

    -8~-3dBm

    -3~0dBm

    -3~1dBm

    -3~2dBm

    Wavelength

    1310nm

    1310nm

    1490/1550nm

    1490/1550nm

    1490/1550nm

    Receiver sensitivity

    < -32dBm

    < -34dBm

    < -34dBm

    < -38dBm

    < -38dBm

    Power Supply

    External Power supply

    DC 5V

    Internal Power Supply

    AC 100-260V 48VDC

    Environmental Parameters

    Work Temperature

    -20℃~+65℃(Commercial)  -40℃~+85℃(Industrial )

    Storage Temperature

    -40~+90

    Humidity

    5%~90% non-condensing

    MTBF (Hours)

    >50000

    Certification

    FCC Part 15 , Class A, RoHS and CE Mark


  • size:199*88*25mm
