Product name

TBC-APE2521AB

CPU

MT7628DAN+MT7613BEN

Flash

SPI NOR 8MB

DDR2

64MB

5G Working frequency

5.150GHz～5.850GHz

5G WIFI Transfer Protocol

802.11 a / n /ac

Directional 5G antenna

Gain：14dbi

SSID hidden

Support

Highest rate

900Mbps

Maximum support for wireless access

50+

Maximum transmit power

< 27dBm

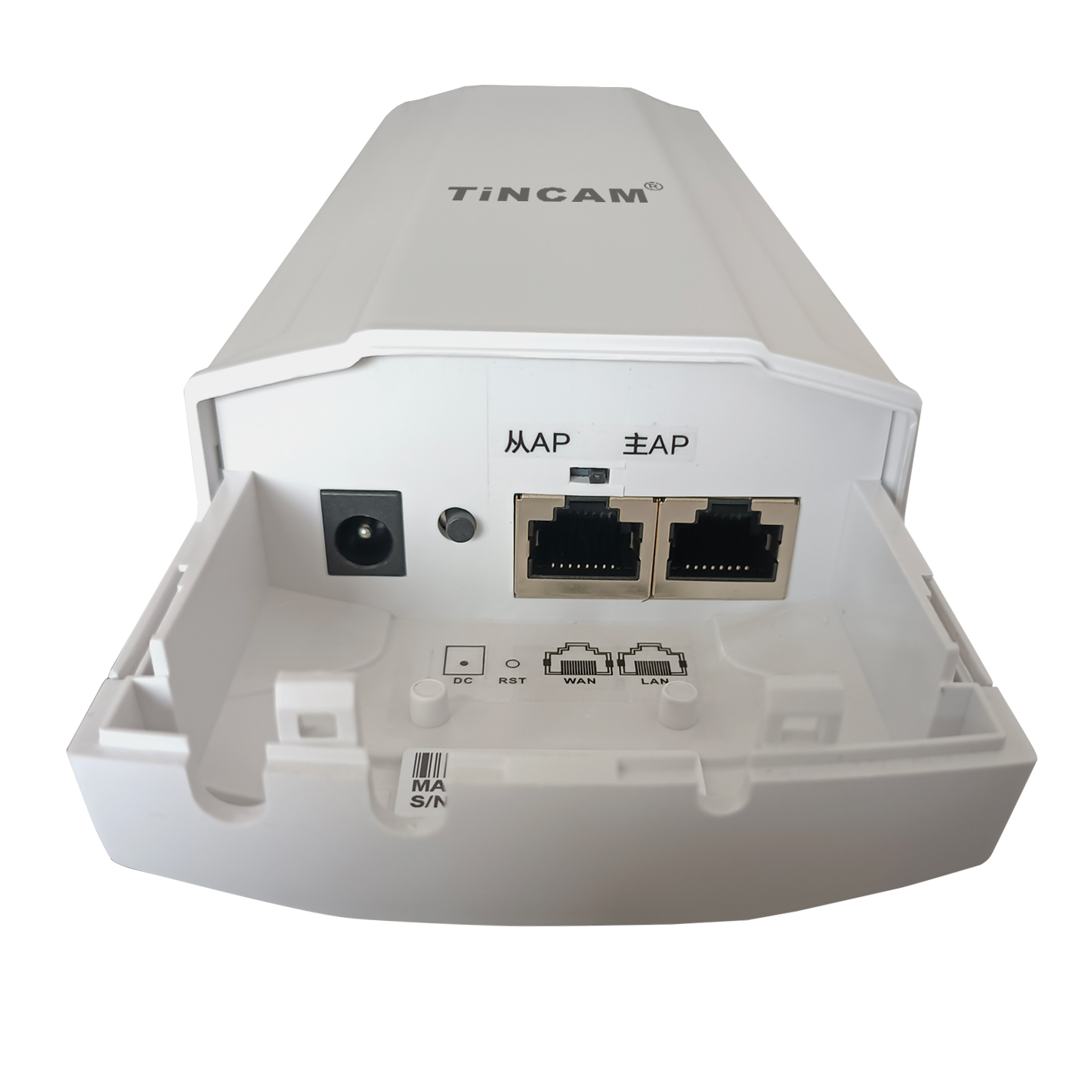

Port (WAN)

1个10/100M Adaptive WAN port, support POE power supply

Port（LAN）

1个10/100M Adaptive LAN port

POE

48V  0.5A  or  24V  0.5A （choose one）

DC

12V  1A

Button

reset button (long press for 6-10 seconds to restore the factory default configuration, short press for 1 second to initiate pairing)

DIP switch

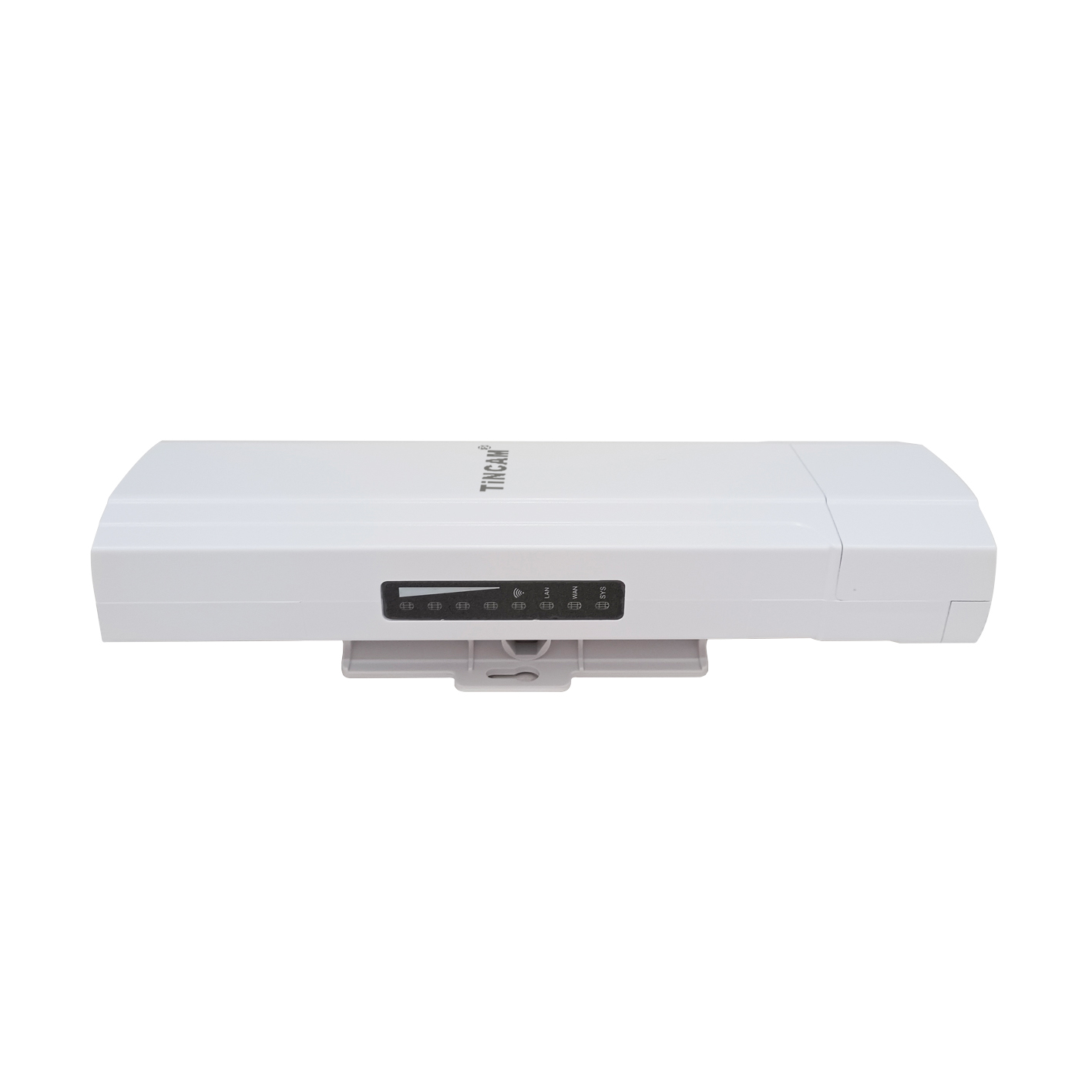

Status Indicator

PWR light, WAN port light, LAN port light, 5G WIFI light, signal strength light*4

Waterproof performance

IP65

ESD test

±6KV

Surge test

Signal difference±2KV

Maximum power consumption

< 8W

Product size

230mm*75mm*55mm

working environment

Normal working temperature: -30°C to 55°C;

Maximum operating temperature: -35°C to 75°C;

Storage temperature: 0°C to 70°C;

Humidity: 5%～95% (non-condensing)
