Main chip

AR9331

Memory

DDR2 64MB （Highest supportDDR2 128MB）

FLASH

SPI 8MB（Highest support16MB）

Protocol standard

IEEE802.11b/802.11g/802.11n/802.3/802.3u

Wireless rate

2.4G 300Mbps

modulation mode

CCK OFDM

Working frequency band

2.4GHZ

RF parameters

11g 54M: 15+/-2dBm @EVM<-25dB

TX:

11n MCS7 HT40: 13+/-2dBm @EVM<-28dB

11g 54M: -72+/-2dBm @PER<10%

RX:

11n MCS7 HT40: -67+/-2dBm @ PER<10%

antenna

Non-removable 8dBi high gain directional antenna.

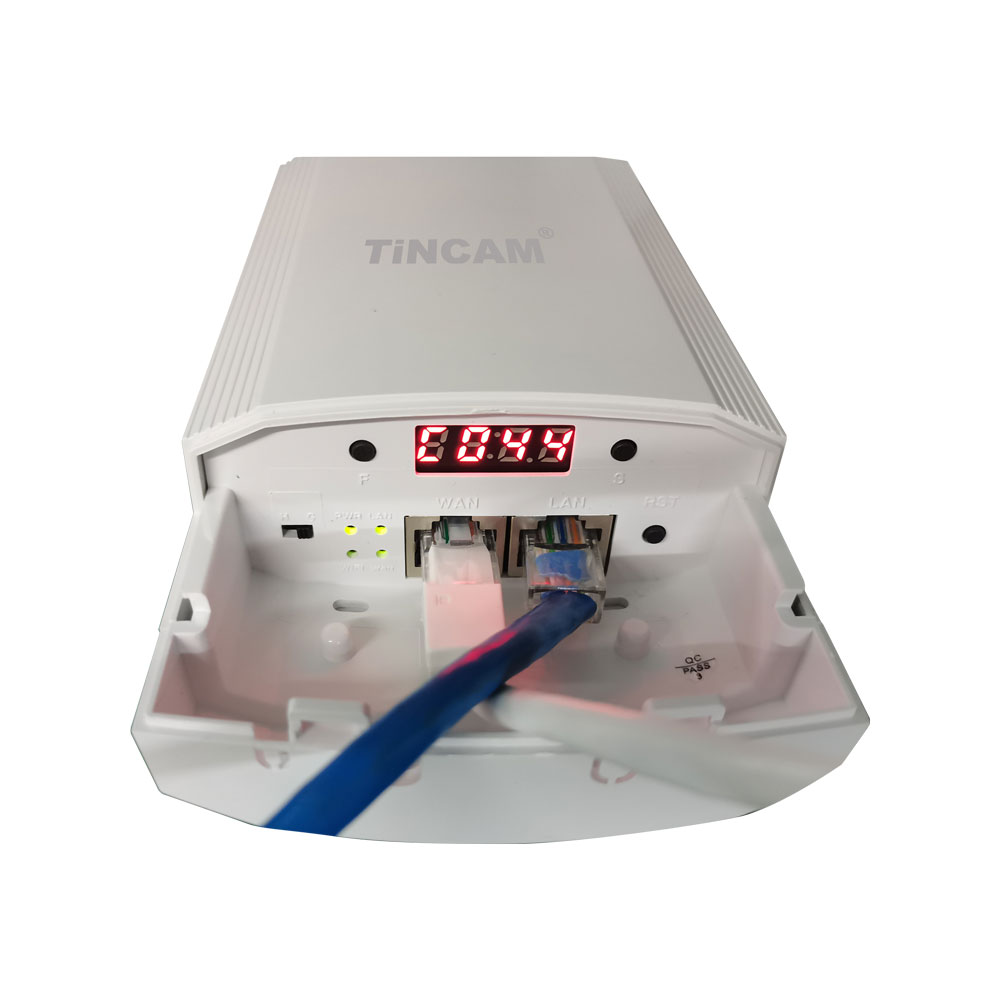

Physical interface

A 10/100M adaptive WAN port and a 10/100M adaptive LAN port; Support for Auto MDI/MDIX）

One Reset Button and One DC Power Interface

Indicator light

1 power supply lamp, 1 WAN port lamp, 1 LAN lamp, 1 WiFi lamp, 4 signal lamps

The power adapter

DC 12V~18V/1A

Is POE Power Supply Supported?

Non-standard12V~18V 1A

Maximum Power Consumption of Products

< 5W

work environment

Working temperature: - 10 40 Storage temperature: - 40 70

Working humidity: 10% to 90% RH does not condensate

Storage humidity: 5% to 90% RH does not condense

Spare parts list

Wire * 1 Warranty Card * 1 Installation Guide * 1 Instruction * 1 Tape * 1 15V/1A Non-standard POE Power Adapter *1
